MX7245JP+T

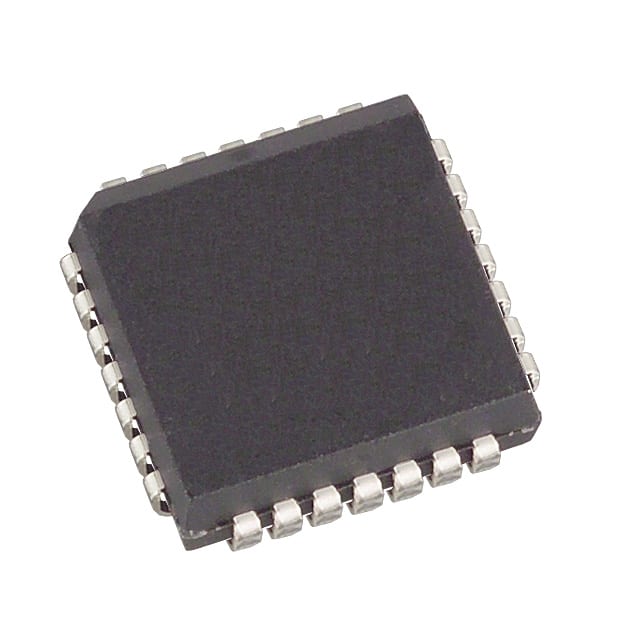

IC DAC 12BIT V-OUT 28PLCCManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated MX7245JP-T is a 12-bit, single-channel multiplying digital-to-analog converter. This component features a voltage output, buffered for direct interface. The parallel data interface simplifies integration into established systems. It offers a high precision with a maximum INL/DNL of ±1 LSB. Designed for surface mounting, it is supplied in a 28-PLCC (J-Lead) package with dimensions of 11.51x11.51mm. The operating temperature range is 0°C to 70°C. Analog supply voltage requirements are ±11.4V to ±15.75V, with digital supply voltage also ranging from 11.4V to 15.75V. A settling time of 5µs is achievable. This component finds application in test and measurement equipment, industrial automation, and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 21 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-LCC (J-Lead) |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Data Interface | Parallel |
| Reference Type | Internal |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | ±11.4V ~ 15.75V |
| Voltage - Supply, Digital | 11.4V ~ 15.75V |
| Settling Time | 5µs |
| Supplier Device Package | 28-PLCC (11.51x11.51) |
| Architecture | Multiplying DAC |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | ±1 (Max), ±1 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
