MX7245JP+

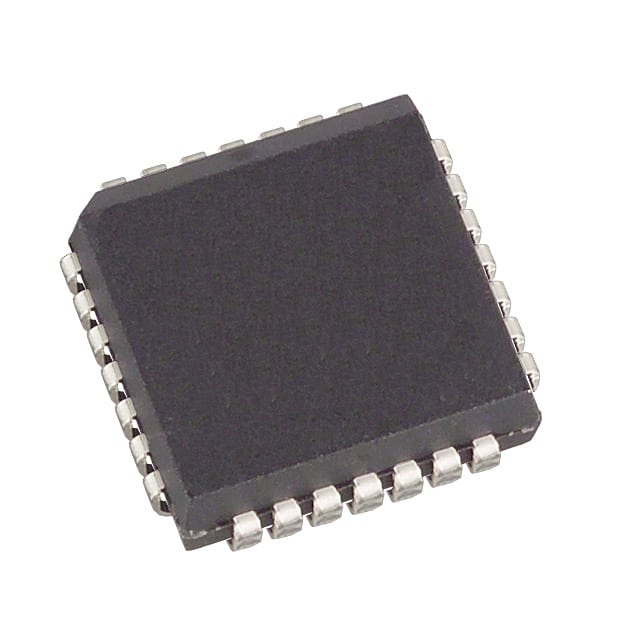

IC DAC 12BIT V-OUT 28PLCCManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MX7245JP- is a 12-bit, single-channel, multiplying digital-to-analog converter (DAC) featuring a voltage output. This component utilizes a parallel data interface and is housed in a 28-PLCC (J-Lead) surface-mount package. The internal reference type contributes to its performance, with specified INL/DNL of ±1 LSB maximum. It operates with analog supply voltages ranging from ±11.4V to ±15.75V and digital supply voltages from 11.4V to 15.75V. The buffered voltage output offers a settling time of 5µs. This device is suitable for applications in industrial control and data acquisition systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 21 week(s)Product Status: ActivePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 28-LCC (J-Lead) |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Data Interface | Parallel |
| Reference Type | Internal |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | ±11.4V ~ 15.75V |
| Voltage - Supply, Digital | 11.4V ~ 15.75V |
| Settling Time | 5µs |
| Supplier Device Package | 28-PLCC (11.51x11.51) |
| Architecture | Multiplying DAC |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | ±1 (Max), ±1 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
