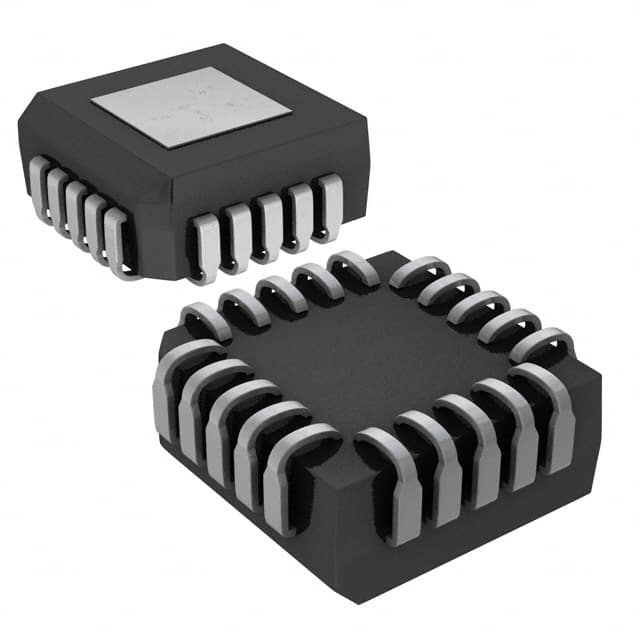

MX7224KP+
IC DAC 8BIT W/AMP 20-PLCCManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated's MX7224KP- is an 8-bit, single-channel digital-to-analog converter featuring an R-2R architecture. This component offers buffered voltage output and requires an external reference. Designed for parallel data interfacing, it boasts a maximum INL/DNL of ±1 LSB and a settling time of 8µs. The MX7224KP- is packaged in a 20-PLCC (9x9) surface-mount configuration and operates within a temperature range of 0°C to 70°C. Analog supply voltage can range from 11.4V to 16.5V and -5V, with digital supply requirements between 14.25V and 15.75V. This device is commonly found in industrial control systems, audio processing, and measurement equipment applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-LCC (J-Lead) |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 8 |
| Data Interface | Parallel |
| Reference Type | External |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 11.4V ~ 16.5V, -5V |
| Voltage - Supply, Digital | 14.25V ~ 15.75V |
| Settling Time | 8µs |
| Supplier Device Package | 20-PLCC (9x9) |
| Architecture | R-2R |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | ±1 (Max), ±1 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
