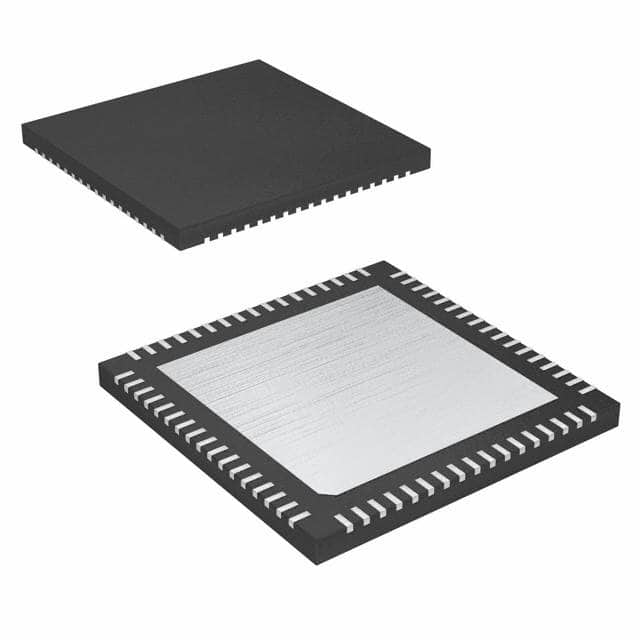

MAX5873EGK+TD
IC DAC 12BIT A-OUT 68QFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
12 Bit Digital to Analog Converter 2 68-QFN (10x10)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 19 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 68-VFQFN Exposed Pad |
| Output Type | Current - Unbuffered |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 1.71V ~ 1.89V, 3.135V ~ 3.465V |
| Voltage - Supply, Digital | 1.71V ~ 1.89V, 3.135V ~ 3.465V |
| Settling Time | 14µs (Typ) |
| Supplier Device Package | 68-QFN (10x10) |
| Architecture | Current Steering |
| Number of D/A Converters | 2 |
| INL/DNL (LSB) | ±0.2, ±0.13 |
| Differential Output | Yes |
| Programmable | Not Verified |
