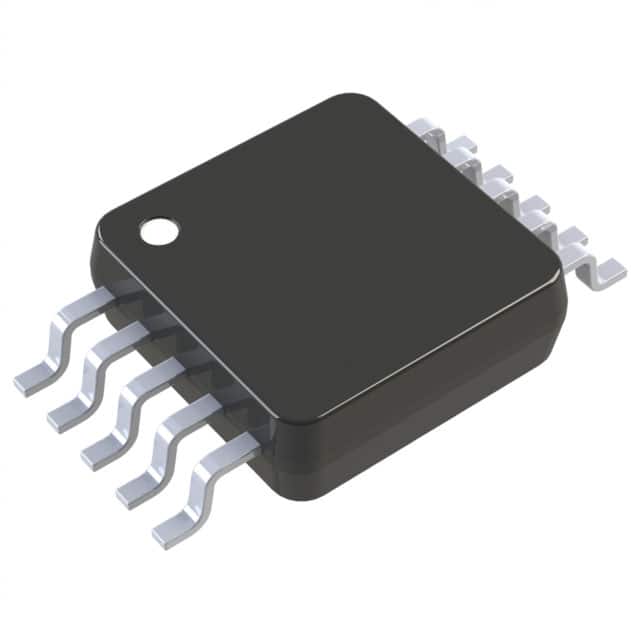

MAX5842LEUB+T
IC DAC 12BIT V-OUT 10UMAXManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX5842LEUB-T is a 12-bit, quad-channel voltage-output digital-to-analog converter (DAC). This component features an I2C serial interface for data communication. The DAC architecture is a String DAC, providing a buffered voltage output. Key specifications include an INL/DNL of ±2 LSB and ±1 LSB respectively. The device offers a settling time of 12µs and supports analog and digital supply voltages ranging from 2.7V to 5.5V. An external reference is utilized. The MAX5842LEUB-T is housed in a 10-uMAX/uSOP package, suitable for surface mount applications. Operating temperature ranges from -40°C to 85°C. This component is commonly employed in consumer electronics, industrial control systems, and medical instrumentation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-TFSOP, 10-MSOP (0.118"", 3.00mm Width) |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Data Interface | I2C |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Settling Time | 12µs |
| Supplier Device Package | 10-uMAX/uSOP |
| Architecture | String DAC |
| Number of D/A Converters | 4 |
| INL/DNL (LSB) | ±2, ±1 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
