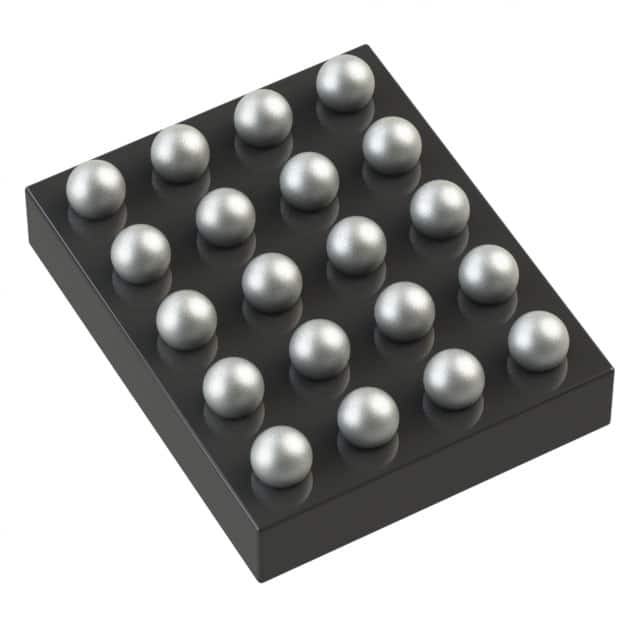

MAX5823AWP+T
ULTRA-SMALL, OCTAL CHANNEL, 8-/1Manufacturer: Analog Devices Inc./Maxim Integrated
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
8 Bit Digital to Analog Converter 8 20-WLP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 29 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-WFBGA, WLBGA |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 8 |
| Data Interface | I2C |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 1.8V ~ 5.5V |
| Settling Time | 4.5µs |
| Supplier Device Package | 20-WLP |
| Architecture | R-2R |
| Number of D/A Converters | 8 |
| INL/DNL (LSB) | ±0.25, ±0.25 |
| Differential Output | No |
| Programmable | Not Verified |
Request a Quote
