MAX5822MEUA+T
IC DAC 12BIT V-OUT 8UMAXManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More

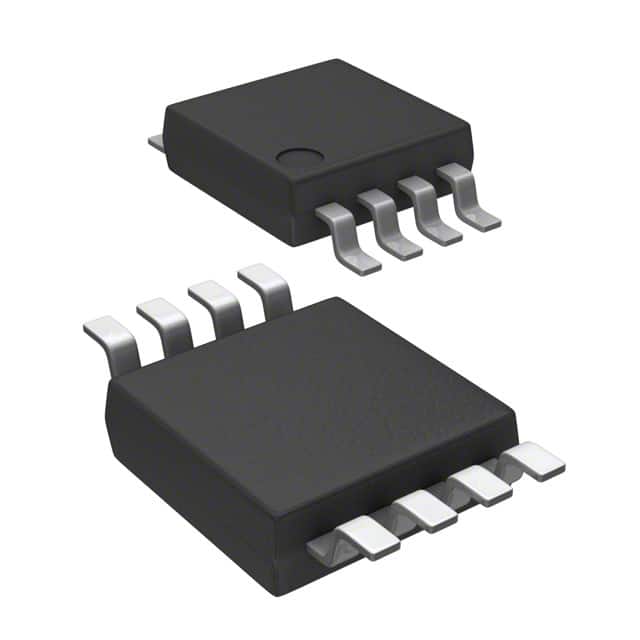

Analog Devices Inc./Maxim Integrated MAX5822MEUA-T is a dual 12-bit voltage-output digital-to-analog converter. This component features an I2C interface for data communication and a string DAC architecture. The device offers a ±2 LSB INL and ±1 LSB DNL maximum specification. Designed for surface mounting, it is supplied in an 8-uMAX/uSOP package. The MAX5822MEUA-T operates from an analog and digital supply voltage range of 2.7V to 5.5V and a temperature range of -40°C to 85°C. It is suitable for applications in consumer electronics, industrial control, and medical instrumentation. The component boasts a settling time of 12µs and an external reference type.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 29 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-TSSOP, 8-MSOP (0.118"", 3.00mm Width) |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Data Interface | I2C |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Settling Time | 12µs |
| Supplier Device Package | 8-uMAX/uSOP |
| Architecture | String DAC |
| Number of D/A Converters | 2 |
| INL/DNL (LSB) | ±2, ±1 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
