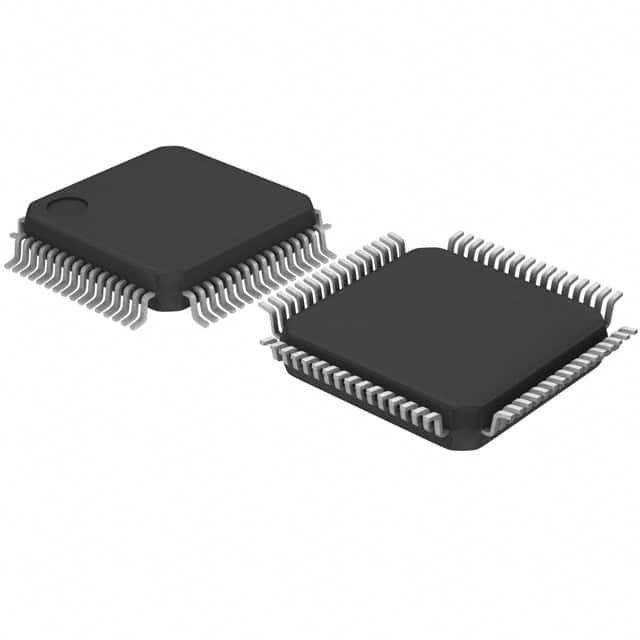

MAX5774UCB+TD
IC DAC 14BIT V-OUT 64LQFPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated MAX5774UCB-TD is a 32-channel, 14-bit voltage-output digital-to-analog converter. This device features an SPI and DSP compatible serial interface and is housed in a 64-LQFP (10x10) package. With a ±1 LSB INL/DNL specification, it offers precise conversion. The analog supply voltage is 5V, while the digital supply ranges from 2.7V to 5.25V. The output is buffered voltage. This component is suitable for applications in consumer electronics, industrial automation, and medical equipment. The settling time is typically 20µs. It operates within a temperature range of 0°C to 85°C and utilizes an external reference. This part is supplied on a Tape & Reel (TR).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 40 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 64-LQFP |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 14 |
| Data Interface | SPI, DSP |
| Reference Type | External |
| Operating Temperature | 0°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Settling Time | 20µs (Typ) |
| Supplier Device Package | 64-LQFP (10x10) |
| Architecture | Pipelined |
| Number of D/A Converters | 32 |
| INL/DNL (LSB) | ±1, ±1 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
