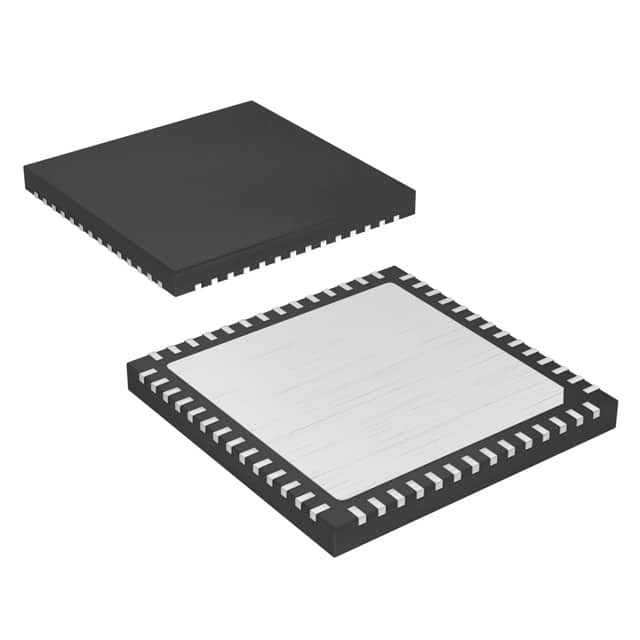

MAX5734AUTN+
IC DAC 16BIT V-OUT 56TQFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated MAX5734AUTN- is a 16-bit, 32-channel voltage-output digital-to-analog converter. This device features a pipelined architecture and offers a wide analog supply voltage range of 5V, with digital supply ranging from 2.7V to 5.25V. Data is interfaced via SPI and DSP protocols. The MAX5734AUTN- boasts excellent linearity, with typical INL/DNL specifications of ±4 LSB and ±1 LSB, respectively. It is housed in a 56-TQFN (8x8) package with an exposed pad, suitable for surface mounting. The buffered voltage output and a settling time of 20µs (typ) make it well-suited for applications in consumer electronics, industrial automation, and medical equipment requiring high-precision signal generation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 56-WFQFN Exposed Pad |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Data Interface | SPI, DSP |
| Reference Type | External |
| Operating Temperature | 0°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Settling Time | 20µs (Typ) |
| Supplier Device Package | 56-TQFN (8x8) |
| Architecture | Pipelined |
| Number of D/A Converters | 32 |
| INL/DNL (LSB) | ±4, ±1 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
