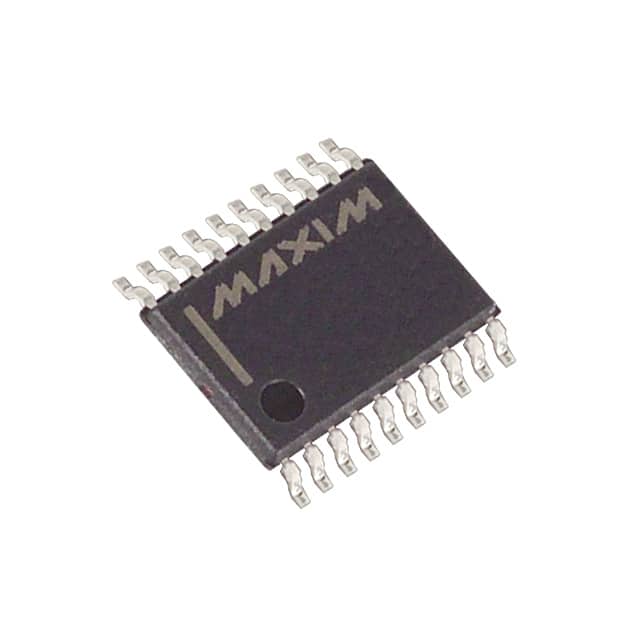

MAX5725BAUP+T
IC DAC 12BIT V-OUT 20TSSOPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated's MAX5725BAUP-T is a high-performance 12-bit, 8-channel digital-to-analog converter (DAC). This voltage-output DAC features an R-2R architecture and supports SPI and DSP data interfaces. The MAX5725BAUP-T offers a buffered voltage output and accepts analog and digital supply voltages ranging from 2.7V to 5.5V. With integral non-linearity (INL) and differential non-linearity (DNL) of ±0.5 LSB and ±0.2 LSB respectively, it provides precise conversion. The device has a typical settling time of 4.5µs. It includes options for both external and internal voltage references and operates within an industrial temperature range of -40°C to 125°C. Supplied in a 20-TSSOP package, this component is suitable for applications in industrial automation, medical equipment, and consumer electronics. The MAX5725BAUP-T is delivered on a tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-TSSOP (0.173"", 4.40mm Width) |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Data Interface | SPI, DSP |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Settling Time | 4.5µs (Typ) |
| Supplier Device Package | 20-TSSOP |
| Architecture | R-2R |
| Number of D/A Converters | 8 |
| INL/DNL (LSB) | ±0.5, ±0.2 |
| Differential Output | No |
| Programmable | Not Verified |
