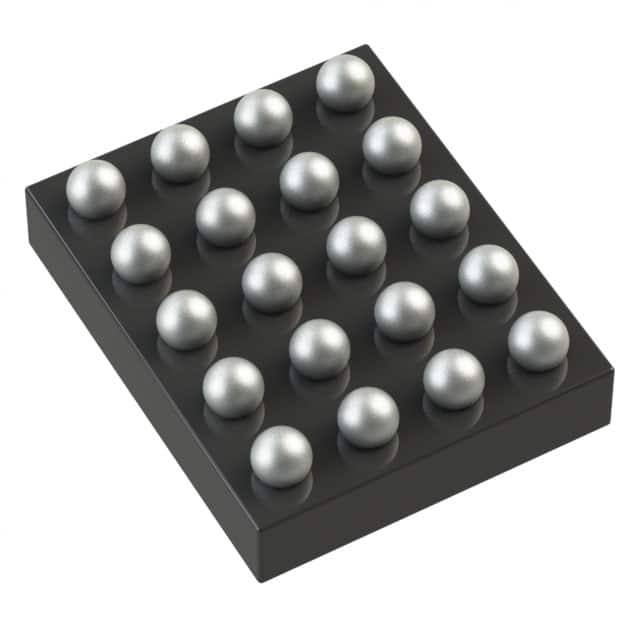

MAX5725AWP+T
IC DAC 12BIT V-OUT 20WLPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated MAX5725AWP-T is a high-performance 12-bit, 8-channel, buffered voltage-output digital-to-analog converter. Featuring an R-2R architecture, this component supports both SPI and DSP data interfaces for flexible integration. It offers excellent linearity with INL/DNL specifications of ±0.5 LSB and ±0.2 LSB, respectively. The device operates across an analog and digital supply voltage range of 2.7V to 5.5V and boasts a fast settling time of 4.5µs (typical). Its compact 20-WLP (20-WFBGA, WLBGA) package is designed for surface mounting. The MAX5725AWP-T is suitable for demanding applications in industrial control, medical equipment, and communications systems. It operates within an extended temperature range of -40°C to 125°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 29 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-WFBGA, WLBGA |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Data Interface | SPI, DSP |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Settling Time | 4.5µs (Typ) |
| Supplier Device Package | 20-WLP |
| Architecture | R-2R |
| Number of D/A Converters | 8 |
| INL/DNL (LSB) | ±0.5, ±0.2 |
| Differential Output | No |
| Programmable | Not Verified |
