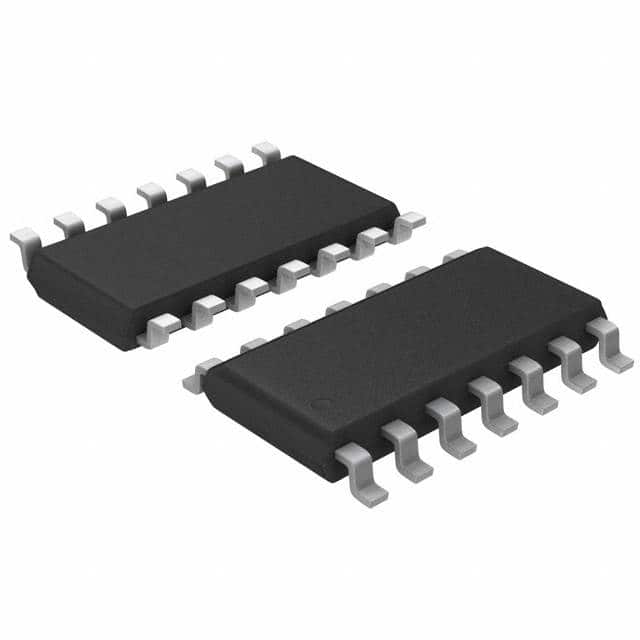

MAX5717GSD+T
IC DAC 16BIT 14SOICManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX5717GSD-T is a 16-bit, single-channel digital-to-analog converter (DAC) housed in a 14-SOIC package. This R-2R architecture DAC supports both SPI and DSP data interfaces, offering flexibility in system integration. It features an unbuffered voltage output and requires an external reference. The device achieves high precision with typical Integral Non-Linearity (INL) and Differential Non-Linearity (DNL) of ±0.25 LSB and ±0.125 LSB, respectively. With a fast settling time of 1.5µs, it is suitable for applications demanding rapid analog output transitions. The operating temperature range is -40°C to 105°C, and it operates with analog and digital supply voltages between 4.5V and 5.5V. This component finds application in industrial automation, medical equipment, and test and measurement instrumentation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 14-SOIC (0.154"", 3.90mm Width) |
| Output Type | Voltage - Unbuffered |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Data Interface | SPI, DSP |
| Reference Type | External |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Supply, Analog | 4.5V ~ 5.5V |
| Voltage - Supply, Digital | 4.5V ~ 5.5V |
| Settling Time | 1.5µs (Typ) |
| Supplier Device Package | 14-SOIC |
| Architecture | R-2R |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | ±0.25, ±0.125 |
| Differential Output | No |
| Programmable | Not Verified |
