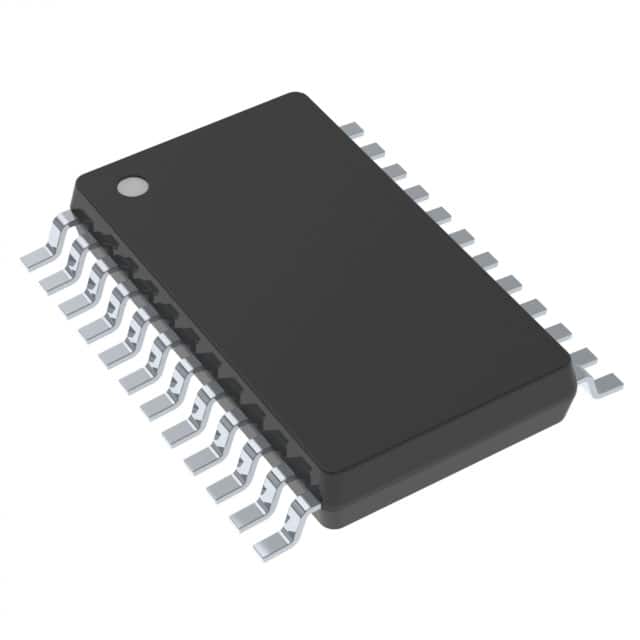

MAX5590AEUG+T
IC DAC 12BIT V-OUT 24TSSOPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated's MAX5590AEUG-T is a 12-bit, 8-channel digital-to-analog converter (DAC). This device features an R-2R architecture and supports SPI and DSP data interfaces. It provides a buffered voltage output and requires an external reference voltage. The INL/DNL specifications are ±1 LSB maximum. Operating within an analog supply range of 2.7V to 5.25V and a digital supply range of 1.8V to 5.25V, the MAX5590AEUG-T is suitable for applications requiring precise analog signal generation. Its settling time is 6µs. This component is supplied in a 24-TSSOP package, designed for surface mounting and delivered on tape and reel. It finds application in industrial control systems and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 32 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-TSSOP (0.173"", 4.40mm Width) |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Data Interface | SPI, DSP |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 2.7V ~ 5.25V |
| Voltage - Supply, Digital | 1.8V ~ 5.25V |
| Settling Time | 6µs |
| Supplier Device Package | 24-TSSOP |
| Architecture | R-2R |
| Number of D/A Converters | 8 |
| INL/DNL (LSB) | ±1 (Max), ±1 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
