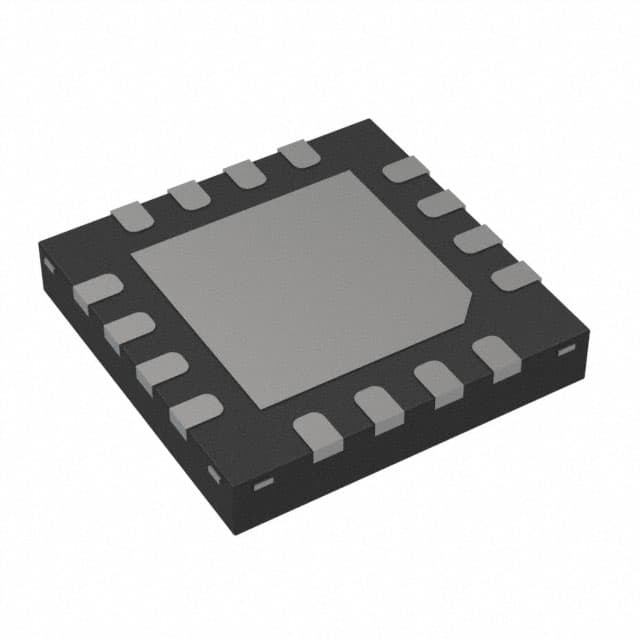

MAX5548ETE+
IC DAC 8BIT A-OUT 16TQFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
8 Bit Digital to Analog Converter 2 16-TQFN (3x3)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 35 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 16-WFQFN Exposed Pad |
| Output Type | Current - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 8 |
| Data Interface | I2C, SPI |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 2.7V ~ 5.25V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Settling Time | 30µs (Typ) |
| Supplier Device Package | 16-TQFN (3x3) |
| Architecture | Current Steering |
| Number of D/A Converters | 2 |
| INL/DNL (LSB) | ±1, ±1 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
