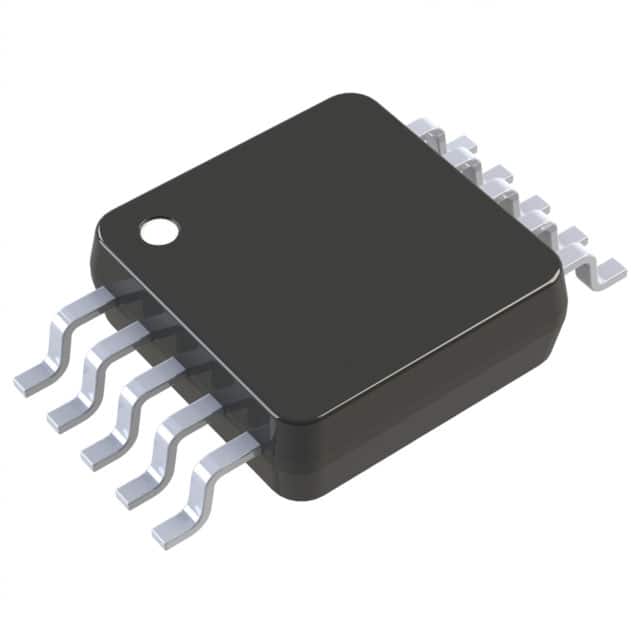

MAX552AEUB+T
IC DAC 12BIT A-OUT 10UMAXManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX552AEUB-T is a 12-bit, single-channel Digital to Analog Converter (DAC). This component features an R-2R architecture and an SPI data interface for efficient digital control. It offers a precise 12-bit resolution with excellent linearity, exhibiting typical INL/DNL of ±0.5 LSB max. The device operates from a single analog and digital supply voltage range of 2.7V to 3.6V, making it suitable for power-sensitive applications. The output type is unbuffered current, with a fast settling time of 1µs. The MAX552AEUB-T is housed in a compact 10-TFSOP/10-MSOP (0.118", 3.00mm Width) surface-mount package, supplied on tape and reel. This DAC finds application in areas such as industrial automation, test and measurement equipment, and consumer electronics. The operating temperature range is -40°C to 85°C, and it utilizes an external reference.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 24 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-TFSOP, 10-MSOP (0.118"", 3.00mm Width) |
| Output Type | Current - Unbuffered |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 2.7V ~ 3.6V |
| Voltage - Supply, Digital | 2.7V ~ 3.6V |
| Settling Time | 1µs |
| Supplier Device Package | 10-uMAX/uSOP |
| Architecture | R-2R |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | ±0.5 (Max), ±0.5 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
