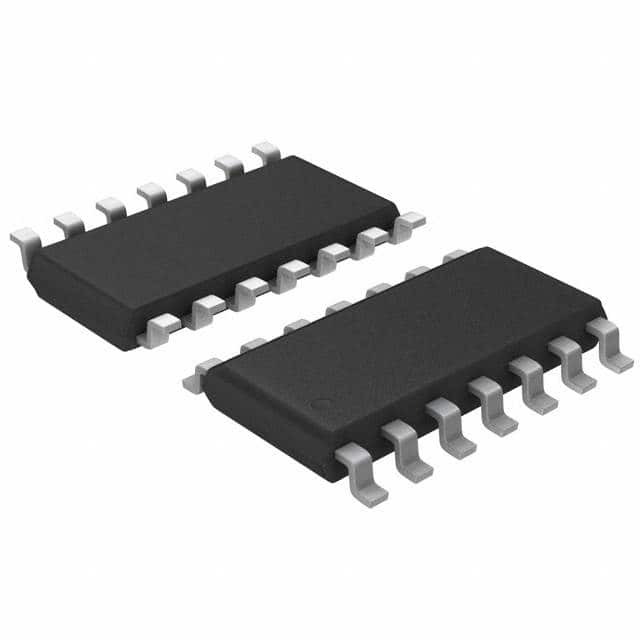

MAX542CCSD+T
IC DAC 16BIT V-OUT 14SOICManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated's MAX542CCSD-T is a 16-bit, single-channel, voltage-output digital-to-analog converter (DAC) housed in a 14-SOIC package. This R-2R architecture DAC features an SPI data interface and an external reference type, offering precise conversion capabilities. It operates with analog and digital supply voltages of 5V and provides an unbuffered voltage output. The component boasts excellent linearity with ±0.5 LSB INL/DNL specifications and a typical settling time of 1µs. Designed for surface mount applications, this device is suitable for industrial, medical, and consumer electronics where accurate signal generation is critical. The MAX542CCSD-T is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 19 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 14-SOIC (0.154"", 3.90mm Width) |
| Output Type | Voltage - Unbuffered |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Settling Time | 1µs (Typ) |
| Supplier Device Package | 14-SOIC |
| Architecture | R-2R |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | ±0.5, ±0.5 |
| Differential Output | No |
| Programmable | Not Verified |
