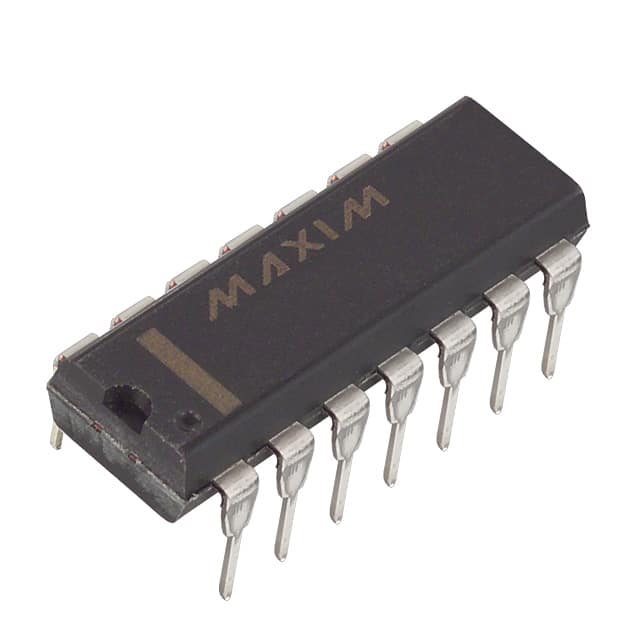

MAX542ACPD+
IC DAC 16BIT SER V-OUT 5V 14-DIPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX542ACPD- is a 16-bit, single-channel, serial voltage-output digital-to-analog converter. Featuring an R-2R architecture, this component utilizes an SPI data interface for efficient communication. It operates with a 5V analog and digital supply voltage and offers an unbuffered voltage output. The INL/DNL specifications are ±0.5 LSB, ensuring high linearity. The settling time is typically 1µs. This device is housed in a 14-PDIP package, facilitating through-hole mounting. It requires an external reference voltage. Applications for the MAX542ACPD- include industrial automation, instrumentation, and data acquisition systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 21 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 14-DIP (0.300"", 7.62mm) |
| Output Type | Voltage - Unbuffered |
| Mounting Type | Through Hole |
| Number of Bits | 16 |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Settling Time | 1µs (Typ) |
| Supplier Device Package | 14-PDIP |
| Architecture | R-2R |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | ±0.5, ±0.5 |
| Differential Output | No |
| Programmable | Not Verified |
