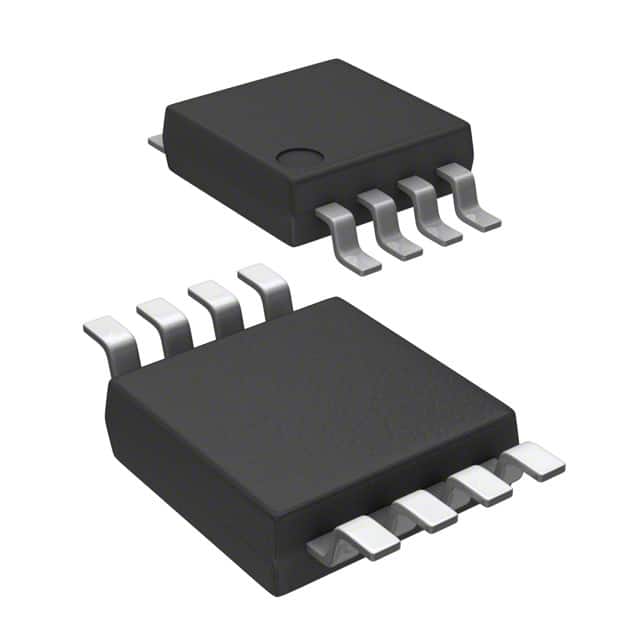

MAX535AEUA+
IC DAC 13BIT V-OUT 8UMAXManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX535AEUA- is a 13-bit, single-channel, voltage-output digital-to-analog converter (DAC). This R-2R architecture DAC features an SPI data interface and an external reference. It offers a guaranteed linearity of ±0.5 LSB INL and ±1 LSB DNL maximum. The device operates from a single 5V analog and digital supply. Its buffered voltage output provides a fast settling time of 16µs (typical). The MAX535AEUA- is available in an 8-pin uMAX/uSOP package, suitable for surface-mount applications. This component is commonly utilized in industrial automation, medical devices, and consumer electronics requiring precise analog signal generation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 8-TSSOP, 8-MSOP (0.118"", 3.00mm Width) |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 13 |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Settling Time | 16µs (Typ) |
| Supplier Device Package | 8-uMAX/uSOP |
| Architecture | R-2R |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | ±0.5 (Max), ±1 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
