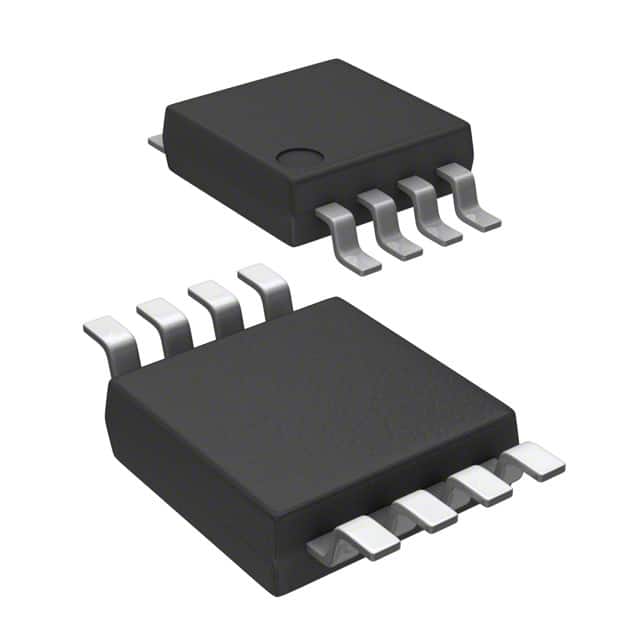

MAX5353BCUA+T
IC DAC 12BIT V-OUT 8UMAXManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX5353BCUA-T is a 12-bit, single-channel, voltage-output digital-to-analog converter (DAC) housed in an 8-uMAX/uSOP package. This R-2R architecture DAC features an SPI serial interface for data input. It provides a buffered voltage output and supports an external reference voltage. The device operates across an analog and digital supply voltage range of 3.15V to 3.6V, with an operating temperature range of 0°C to 70°C. Integral and differential non-linearity (INL/DNL) are specified at ±2 LSB maximum and ±1 LSB maximum, respectively. The typical settling time for this component is 14µs. Applications for this DAC can be found in industrial control systems, instrumentation, and consumer electronics. The component is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 23 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-TSSOP, 8-MSOP (0.118"", 3.00mm Width) |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 3.15V ~ 3.6V |
| Voltage - Supply, Digital | 3.15V ~ 3.6V |
| Settling Time | 14µs (Typ) |
| Supplier Device Package | 8-uMAX/uSOP |
| Architecture | R-2R |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | ±2 (Max), ±1 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
