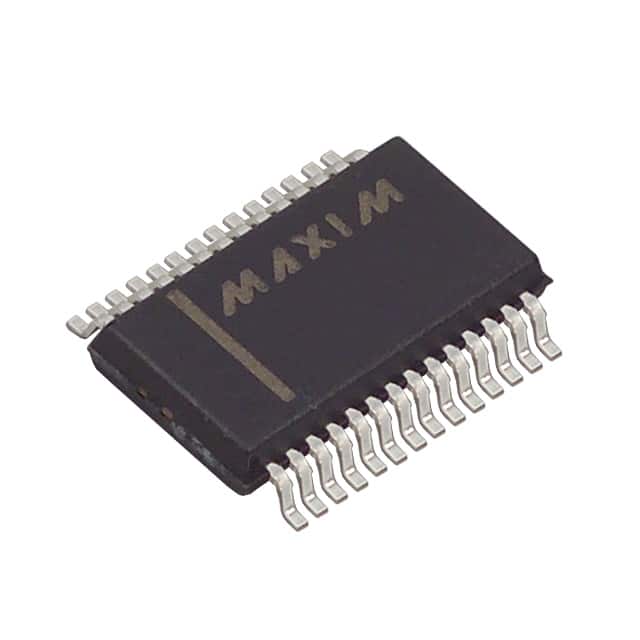

MAX5322EAI+T
IC DAC 12BIT V-OUT 28SSOPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated MAX5322EAI-T is a dual 12-bit voltage-output digital-to-analog converter featuring an R-2R architecture. This component utilizes an SPI data interface for efficient communication and offers a buffered voltage output. Designed for demanding applications, it accepts analog supply voltages ranging from ±10.8V to ±15.75V and digital supply voltages from 2.7V to 5.5V. The device exhibits excellent linearity with typical INL/DNL specifications of ±1 LSB maximum. It is supplied in a 28-SSOP package for surface mounting and operates within an industrial temperature range of -40°C to 85°C. The settling time is approximately 10µs. This DAC is suitable for use in industrial control, instrumentation, and data acquisition systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 27 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-SSOP (0.209"", 5.30mm Width) |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | ±10.8V ~ 15.75V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Settling Time | 10µs (Typ) |
| Supplier Device Package | 28-SSOP |
| Architecture | R-2R |
| Number of D/A Converters | 2 |
| INL/DNL (LSB) | ±1 (Max), ±1 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
