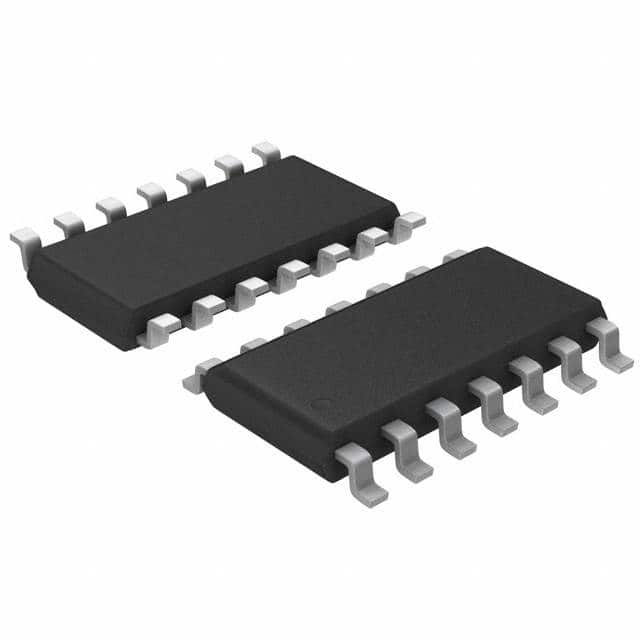

MAX531BCSD+T
IC DAC 12BIT V-OUT 14SOICManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX531BCSD-T is a 12-bit, single-channel voltage-output digital-to-analog converter. This R-2R architecture device features an SPI data interface for efficient communication. It offers a buffered voltage output and supports external or internal voltage references. The INL/DNL specifications are within ±1 LSB (Max). Operating over a temperature range of 0°C to 70°C, this component is housed in a 14-SOIC package and is supplied on tape and reel. It requires analog supply voltages of ±5V and a digital supply of 5V. The settling time is typically 25µs. This DAC is suitable for applications in industrial automation, medical equipment, and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 14-SOIC (0.154"", 3.90mm Width) |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Data Interface | SPI |
| Reference Type | External, Internal |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | ±5V |
| Voltage - Supply, Digital | 5V |
| Settling Time | 25µs (Typ) |
| Supplier Device Package | 14-SOIC |
| Architecture | R-2R |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | ±1 (Max), ±1 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
