MAX531ACSD+T

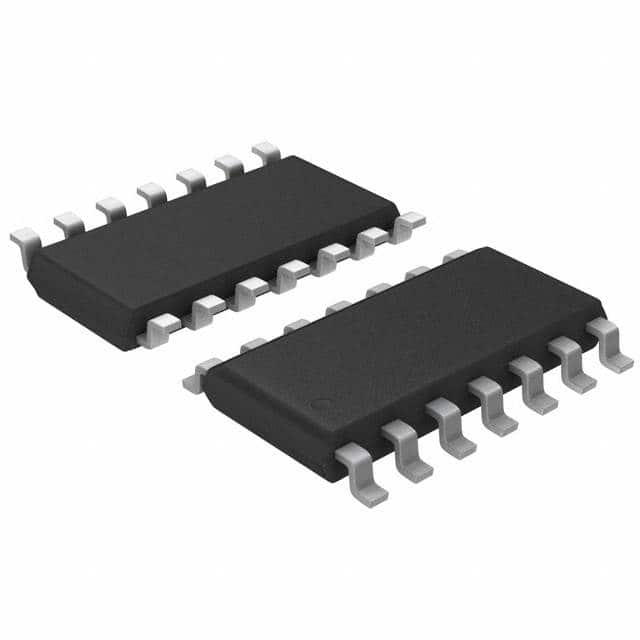

IC DAC 12BIT V-OUT 14SOICManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated’s MAX531ACSD-T is a 12-bit, single-channel, voltage-output digital-to-analog converter (DAC) housed in a 14-SOIC package. This R-2R architecture DAC supports an SPI data interface and offers a ±0.5 LSB maximum integral nonlinearity (INL) and ±1 LSB maximum differential nonlinearity (DNL). The component operates with analog supply voltages of ±5V and a digital supply of 5V, featuring a buffered voltage output. Its external or internal reference type and a typical settling time of 25µs make it suitable for applications requiring precise analog signal generation. This component is commonly found in industrial automation, test and measurement equipment, and consumer electronics. The MAX531ACSD-T is supplied in Tape & Reel packaging for efficient surface mount assembly.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 21 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 14-SOIC (0.154"", 3.90mm Width) |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Data Interface | SPI |
| Reference Type | External, Internal |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | ±5V |
| Voltage - Supply, Digital | 5V |
| Settling Time | 25µs (Typ) |
| Supplier Device Package | 14-SOIC |
| Architecture | R-2R |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | ±0.5 (Max), ±1 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
