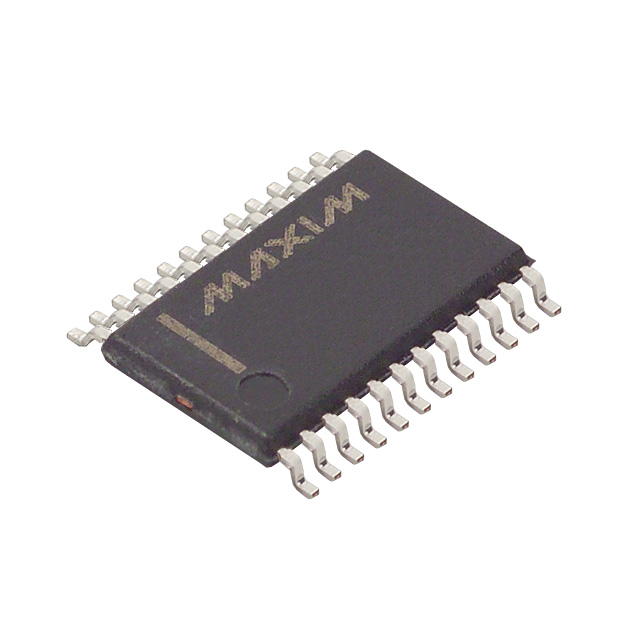

MAX5318GUG+
IC DAC 18BIT V-OUT 24TSSOPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
18 Bit Digital to Analog Converter 1 24-TSSOP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 27 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 24-TSSOP (0.173"", 4.40mm Width) |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 18 |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Supply, Analog | 2.7V ~ 3.3V, 5V, -1.25V |
| Voltage - Supply, Digital | 1.8V ~ 5.5V |
| Settling Time | 3µs (Typ) |
| Supplier Device Package | 24-TSSOP |
| Architecture | - |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | ±0.75, ±0.3 |
| Differential Output | No |
| Programmable | Not Verified |
Request a Quote
