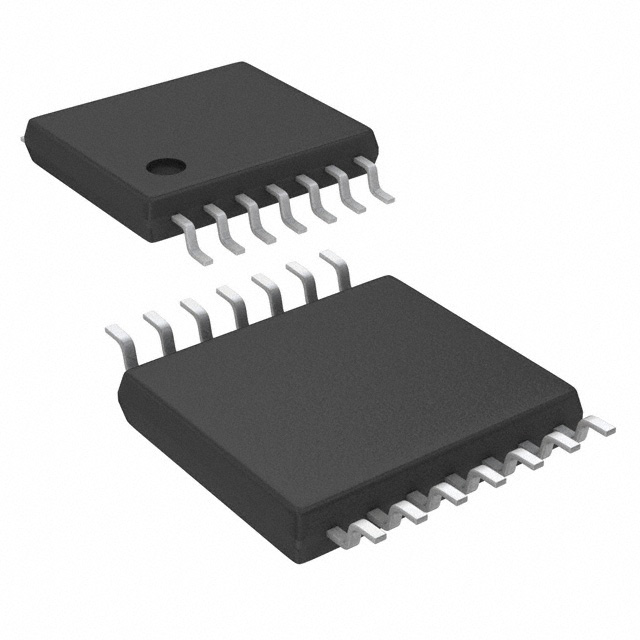

MAX5294EUD+T
IC DAC 8BIT V-OUT 14TSSOPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX5294EUD-T is an 8-bit, dual-channel voltage-output digital-to-analog converter. This component features an SPI/DSP compatible serial interface for flexible data transfer. It operates with analog supply voltages ranging from 2.7V to 5.25V and digital supply voltages from 1.8V to 5.25V. The MAX5294EUD-T offers a buffered voltage output, an external reference, and a settling time of 4µs. Integral and differential non-linearity are specified at ±0.125 LSB and ±1 LSB maximum, respectively. Packaged in a 14-TSSOP, this device is suitable for surface mounting. Its operating temperature range is -40°C to 85°C. Applications include industrial control and instrumentation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 33 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 14-TSSOP (0.173"", 4.40mm Width) |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 8 |
| Data Interface | SPI, DSP |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 2.7V ~ 5.25V |
| Voltage - Supply, Digital | 1.8V ~ 5.25V |
| Settling Time | 4µs |
| Supplier Device Package | 14-TSSOP |
| Architecture | - |
| Number of D/A Converters | 2 |
| INL/DNL (LSB) | ±0.125, ±1 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
