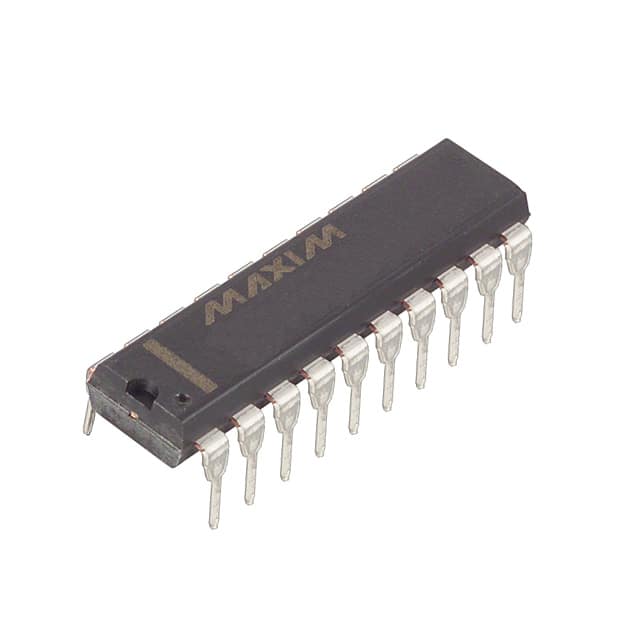

MAX525BEPP+
IC DAC 12BIT QUAD LP 20-DIPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated's MAX525BEPP- is a quad, 12-bit, voltage-output digital-to-analog converter (DAC) featuring an R-2R architecture. This component offers an SPI data interface for efficient communication and operates from a single 5V analog and digital supply. The buffered voltage output simplifies system integration. With a typical settling time of 12µs, the MAX525BEPP- is suitable for applications requiring precise analog signal generation. Key specifications include INL/DNL of ±1 LSB maximum, an external reference type, and operation across a -40°C to 85°C temperature range. The device is supplied in a 20-PDIP package. Industries such as industrial automation, medical instrumentation, and consumer electronics benefit from its performance characteristics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 23 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-DIP (0.300"", 7.62mm) |
| Output Type | Voltage - Buffered |
| Mounting Type | Through Hole |
| Number of Bits | 12 |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Settling Time | 12µs (Typ) |
| Supplier Device Package | 20-PDIP |
| Architecture | R-2R |
| Number of D/A Converters | 4 |
| INL/DNL (LSB) | ± 1 (Max), 1 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
