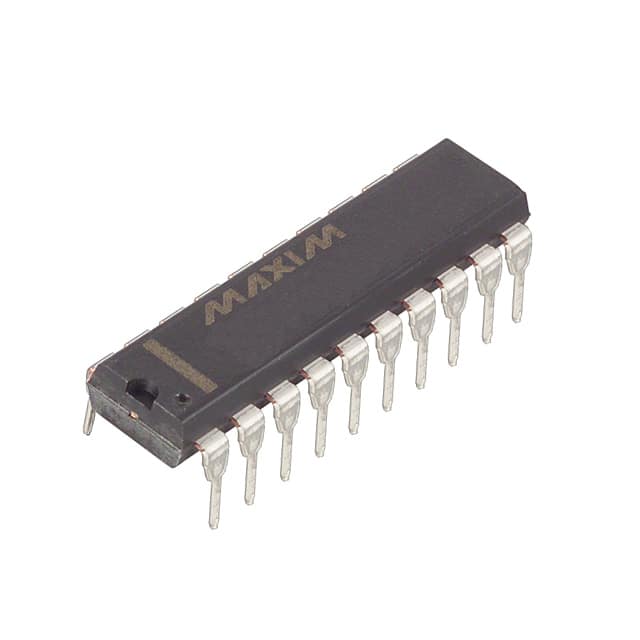

MAX5251BCPP
IC DAC 10BIT V-OUT 20DIPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX5251BCPP is a 10-bit, quad voltage-output DAC featuring an R-2R architecture. This component supports an SPI data interface for efficient communication. The device offers a voltage output that is buffered, with both analog and digital supply voltage ranges specified between 3V and 3.6V. Integral and differential linearity are tightly controlled, with maximum values of ±1 LSB. The MAX5251BCPP operates within a temperature range of 0°C to 70°C and requires an external reference. Settling time is typically 12µs. Packaged in a 20-PDIP (0.300", 7.62mm) format, this through-hole component is suitable for applications in industrial control, test and measurement, and audio systems.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-DIP (0.300"", 7.62mm) |
| Output Type | Voltage - Buffered |
| Mounting Type | Through Hole |
| Number of Bits | 10 |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 3V ~ 3.6V |
| Voltage - Supply, Digital | 3V ~ 3.6V |
| Settling Time | 12µs (Typ) |
| Supplier Device Package | 20-PDIP |
| Architecture | R-2R |
| Number of D/A Converters | 4 |
| INL/DNL (LSB) | ± 1 (Max), 1 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
