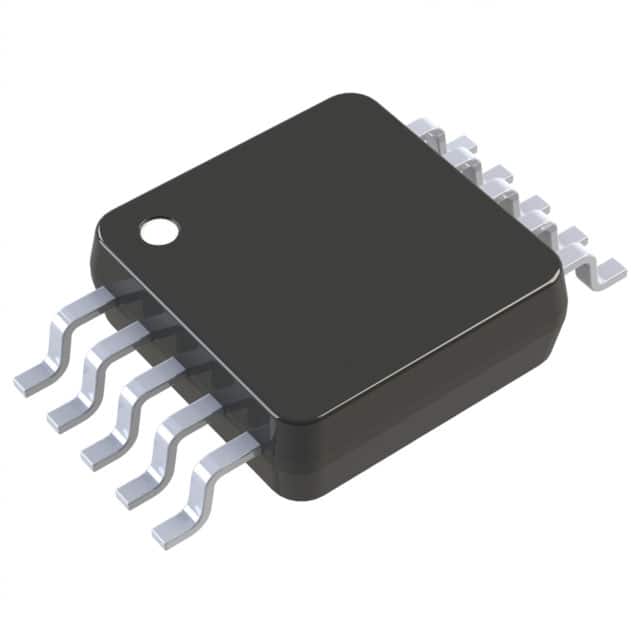

MAX5237EUB+T
IC DAC 10BIT V-OUT 10UMAXManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated MAX5237EUB-T is a 10-bit, dual-channel voltage-output digital-to-analog converter. This device utilizes an R-2R architecture and features an SPI data interface for efficient communication. It offers a buffered voltage output with ±0.5 LSB maximum integral non-linearity (INL) and ±1 LSB maximum differential non-linearity (DNL). Designed for surface mounting, it is supplied in a 10-TFSOP/10-MSOP package, presented on a tape and reel. Operating across a temperature range of -40°C to 85°C, the MAX5237EUB-T supports analog and digital supply voltages of 5V. Its typical settling time is 10µs. This component finds application in areas such as industrial automation and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-TFSOP, 10-MSOP (0.118"", 3.00mm Width) |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 10 |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Settling Time | 10µs (Typ) |
| Supplier Device Package | 10-uMAX/uSOP |
| Architecture | R-2R |
| Number of D/A Converters | 2 |
| INL/DNL (LSB) | ±0.5 (Max), ±1 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
