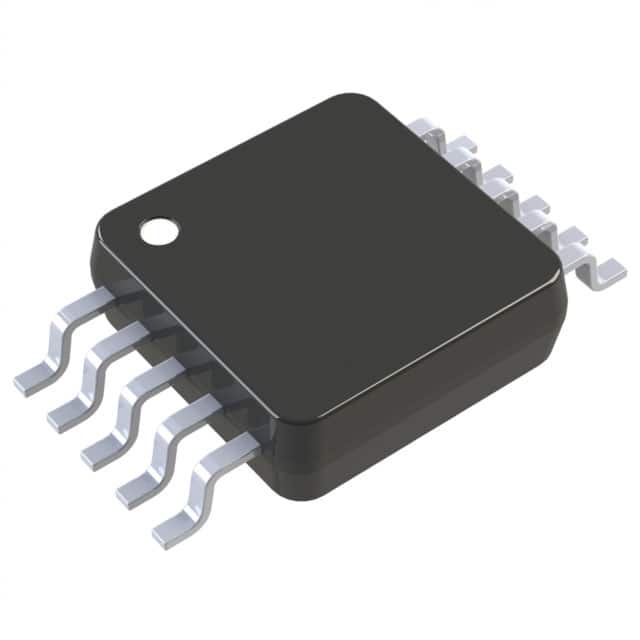

MAX5236EUB+T
IC DAC 10BIT V-OUT 10UMAXManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX5236EUB-T is a dual, 10-bit, voltage-output digital-to-analog converter (DAC) featuring an R-2R architecture. This component utilizes an SPI data interface for efficient communication and offers buffered voltage output. With integrated linearity specifications of ±0.5 LSB maximum for INL and ±1 LSB maximum for DNL, it provides precise conversion. The device operates within a supply voltage range of 2.7V to 3.6V for both analog and digital supplies, and supports an extended operating temperature range of -40°C to 85°C. Its 10µs typical settling time makes it suitable for applications requiring moderate speed. The MAX5236EUB-T is supplied in a 10-TFSOP, 10-MSOP package and is available on tape and reel. This DAC is commonly employed in industrial automation, consumer electronics, and medical instrumentation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-TFSOP, 10-MSOP (0.118"", 3.00mm Width) |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 10 |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 2.7V ~ 3.6V |
| Voltage - Supply, Digital | 2.7V ~ 3.6V |
| Settling Time | 10µs (Typ) |
| Supplier Device Package | 10-uMAX/uSOP |
| Architecture | R-2R |
| Number of D/A Converters | 2 |
| INL/DNL (LSB) | ±0.5 (Max), ±1 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
