MAX5235BEUB+T

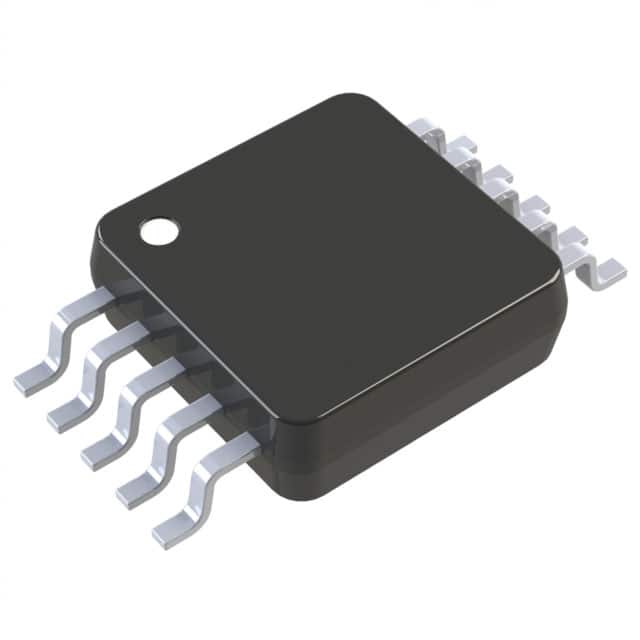

IC DAC 12BIT V-OUT 10UMAXManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated MAX5235BEUB-T is a dual, 12-bit, voltage-output digital-to-analog converter (DAC) presented in a 10-TFSOP/10-MSOP package. This R-2R architecture DAC features an SPI serial interface for data input and supports external voltage references. The device offers a buffered voltage output with a typical settling time of 10µs. It operates with analog and digital supply voltages of 5V and is rated for an industrial temperature range of -40°C to 85°C. The INL and DNL specifications are ±1 LSB maximum. This component is commonly utilized in applications requiring precise analog signal generation, including industrial automation and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-TFSOP, 10-MSOP (0.118"", 3.00mm Width) |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Settling Time | 10µs (Typ) |
| Supplier Device Package | 10-uMAX/uSOP |
| Architecture | R-2R |
| Number of D/A Converters | 2 |
| INL/DNL (LSB) | ±1 (Max), ±1 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
