MAX521BEPP
IC DAC 8BIT V-OUT 20DIPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More

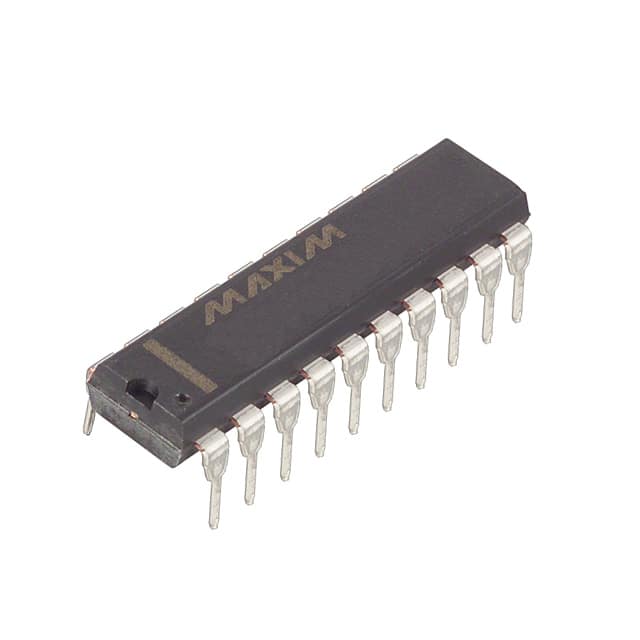

Analog Devices Inc./Maxim Integrated's MAX521BEPP is an 8-bit, R-2R architecture Digital to Analog Converter (DAC) featuring eight voltage outputs. This component utilizes an I2C data interface and requires an external reference voltage. The device offers a voltage output that is buffered, with a typical settling time of 6µs. It operates across a temperature range of -40°C to 85°C, with both analog and digital supply voltages at 5V. The MAX521BEPP is housed in a 20-PDIP package, designed for through-hole mounting. It is commonly employed in instrumentation and industrial control applications.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-DIP (0.300"", 7.62mm) |
| Output Type | Voltage - Buffered |
| Mounting Type | Through Hole |
| Number of Bits | 8 |
| Data Interface | I2C |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Settling Time | 6µs (Typ) |
| Supplier Device Package | 20-PDIP |
| Architecture | R-2R |
| Number of D/A Converters | 8 |
| INL/DNL (LSB) | ±2 (Max), ±1 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
