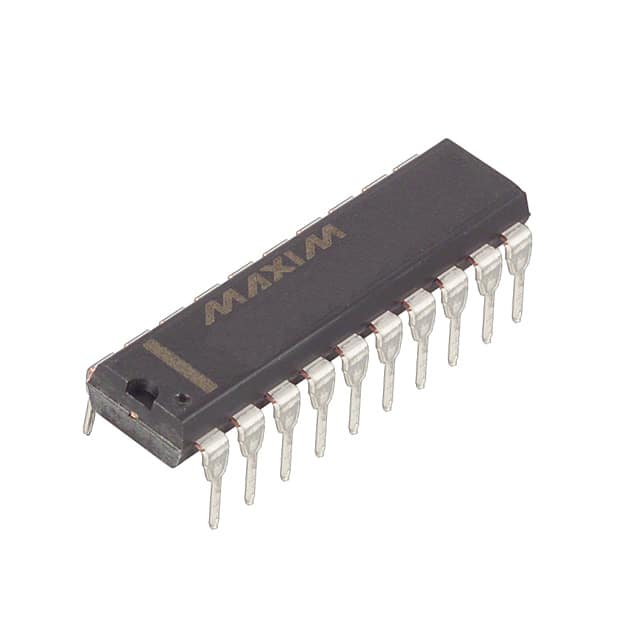

MAX521AEPP+
IC DAC 8BIT OCTAL 2WIRE 20-DIPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated's MAX521AEPP- is an 8-bit, octal, voltage-output digital-to-analog converter. This R-2R ladder architecture device features an I2C serial interface for data communication and supports an external voltage reference. The MAX521AEPP- provides eight independent DAC channels, each with a buffered voltage output. Its typical settling time is 6µs, with integral and differential linearity errors not exceeding ±1.5 LSB (Max). Operating across an industrial temperature range of -40°C to 85°C, this component is supplied in a 20-PDIP through-hole package. Applications for this device are found in industrial automation, medical equipment, and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 20-DIP (0.300"", 7.62mm) |
| Output Type | Voltage - Buffered |
| Mounting Type | Through Hole |
| Number of Bits | 8 |
| Data Interface | I2C |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Settling Time | 6µs (Typ) |
| Supplier Device Package | 20-PDIP |
| Architecture | R-2R |
| Number of D/A Converters | 8 |
| INL/DNL (LSB) | ±1.5 (Max), ±1 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
