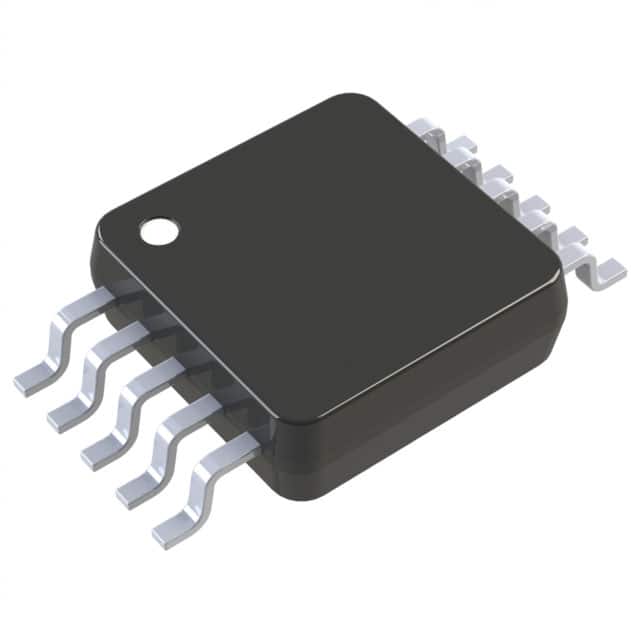

MAX5206BEUB+T
IC DAC 16BIT V-OUT 10UMAXManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated MAX5206BEUB-T is a 16-bit, single-channel voltage-output digital-to-analog converter (DAC). This component features a serial peripheral interface (SPI) for data communication and an external reference type. It offers a buffered voltage output with a typical settling time of 25µs. The device operates within an analog and digital supply voltage range of 2.7V to 3.6V and boasts integral and differential linearity (INL/DNL) of ±20 LSB and ±2 LSB maximum, respectively. Packaged in a 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) form factor, it is supplied on a tape and reel. This DAC is suitable for applications in industrial automation, test and measurement equipment, and consumer electronics. The operating temperature range is -40°C to 105°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 33 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-TFSOP, 10-MSOP (0.118"", 3.00mm Width) |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Supply, Analog | 2.7V ~ 3.6V |
| Voltage - Supply, Digital | 2.7V ~ 3.6V |
| Settling Time | 25µs (Typ) |
| Supplier Device Package | 10-uMAX/uSOP |
| Architecture | - |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | ±20, ±2 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
