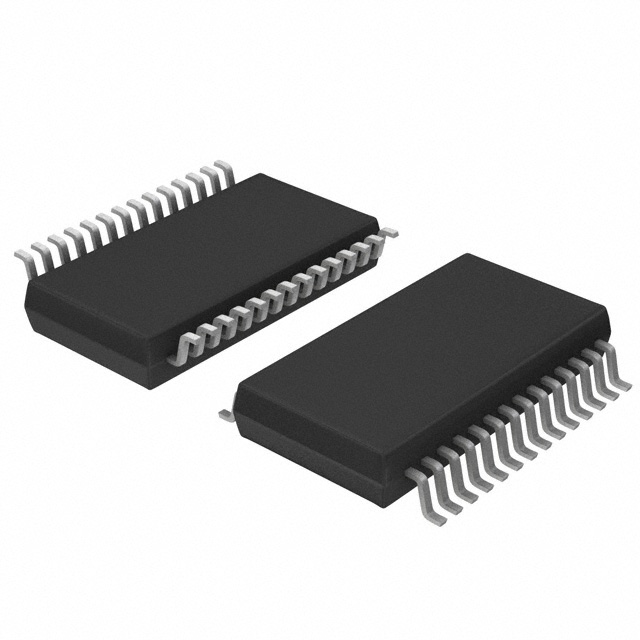

MAX5186BEEI+T
IC DAC 8BIT A-OUT 28QSOPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
8 Bit Digital to Analog Converter 2 28-QSOP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 19 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-SSOP (0.154"", 3.90mm Width) |
| Output Type | Current - Unbuffered |
| Mounting Type | Surface Mount |
| Number of Bits | 8 |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 2.7V ~ 3.3V |
| Voltage - Supply, Digital | 2.7V ~ 3.3V |
| Settling Time | 25ns (Typ) |
| Supplier Device Package | 28-QSOP |
| Architecture | Current Source |
| Number of D/A Converters | 2 |
| INL/DNL (LSB) | ±0.25, ±0.25 |
| Differential Output | Yes |
| Programmable | Not Verified |
