MAX5154BEEE
IC DAC 12BIT V-OUT 16QSOPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX5154BEEE is a dual, 12-bit, voltage-output digital-to-analog converter (DAC) featuring an R-2R architecture. This component utilizes a serial SPI interface for data input and offers a buffered voltage output. The MAX5154BEEE is specified with a maximum Integral Non-Linearity (INL) and Differential Non-Linearity (DNL) of ±1 LSB. Designed for operation with analog and digital supply voltages of 5V, it provides a settling time of 15µs typically. The device is housed in a 16-QSOP package suitable for surface mounting. Applications for this DAC include consumer electronics, battery-powered devices, and industrial control systems. The operating temperature range is -40°C to 85°C.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 16-SSOP (0.154"", 3.90mm Width) |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Settling Time | 15µs (Typ) |
| Supplier Device Package | 16-QSOP |
| Architecture | R-2R |
| Number of D/A Converters | 2 |
| INL/DNL (LSB) | ±1 (Max), ±1 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy
MAX542CESD+T

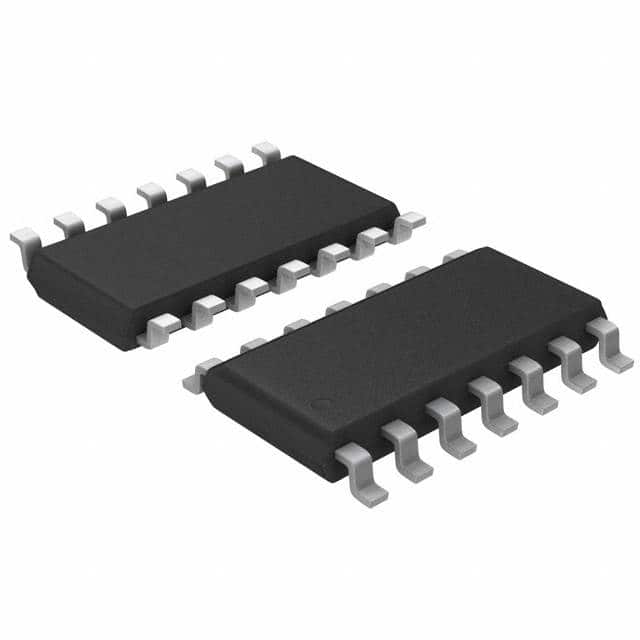

IC DAC 16BIT V-OUT 14SOIC
