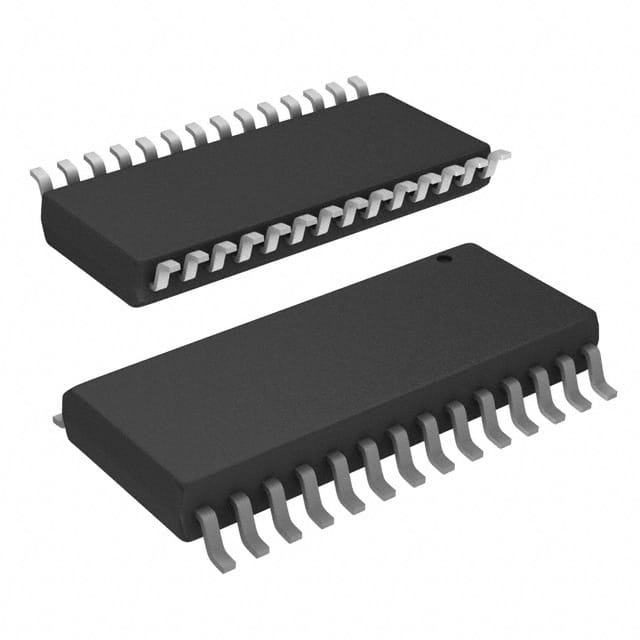

MAX514AEWI+
IC DAC 12BIT A-OUT 28SOICManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated MAX514AEWI- is a 12-bit, quad-channel digital-to-analog converter (DAC) featuring an R-2R architecture. This device offers an SPI data interface for efficient communication and operates across a temperature range of -40°C to 85°C. With a supply voltage range of 4.75V to 5.25V for both analog and digital supplies, it is suitable for applications requiring precise analog output generation. The DAC provides unbuffered current output and has a settling time of 1µs. Integral and differential linearity are specified at ±1 LSB maximum. This component is commonly found in industrial automation, test and measurement equipment, and medical instrumentation. The MAX514AEWI- is supplied in a 28-SOIC package.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 28-SOIC (0.295"", 7.50mm Width) |
| Output Type | Current - Unbuffered |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 4.75V ~ 5.25V |
| Voltage - Supply, Digital | 4.75V ~ 5.25V |
| Settling Time | 1µs |
| Supplier Device Package | 28-SOIC |
| Architecture | R-2R |
| Number of D/A Converters | 4 |
| INL/DNL (LSB) | ±1 (Max), ±0.5 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
