MAX5143EUA+T

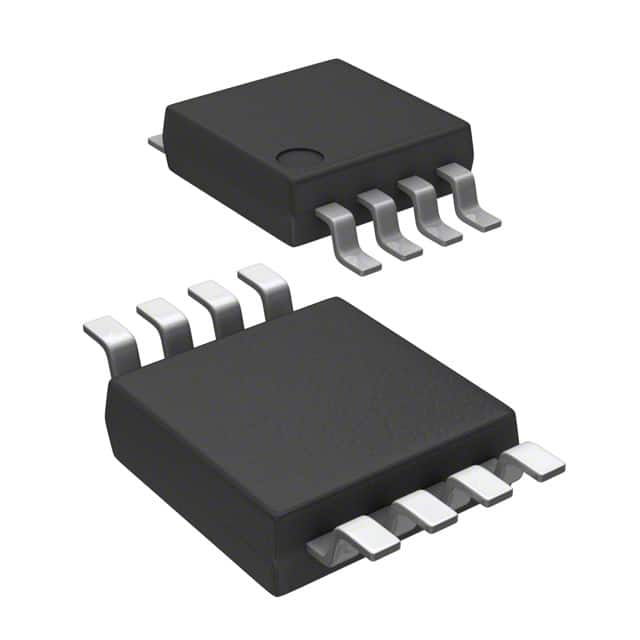

IC DAC 14BIT V-OUT 8UMAXManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated MAX5143EUA-T is a 14-bit voltage-output digital-to-analog converter, featuring an R-2R architecture. This component offers a single DAC channel with an SPI data interface for efficient digital control. It provides a voltage output that is unbuffered and requires an external voltage reference. The device boasts a typical settling time of 1µs and exhibits excellent linearity with Integral Non-Linearity (INL) and Differential Non-Linearity (DNL) of ±0.5 LSB. Operating across an analog and digital supply voltage range of 2.7V to 3.6V, the MAX5143EUA-T is designed for surface mount applications within an extended temperature range of -40°C to 85°C. The component is supplied in an 8-uMAX/uSOP package, presented on a Tape & Reel (TR). This DAC is suitable for applications in industrial automation, communication systems, and portable electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 31 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-TSSOP, 8-MSOP (0.118"", 3.00mm Width) |
| Output Type | Voltage - Unbuffered |
| Mounting Type | Surface Mount |
| Number of Bits | 14 |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 2.7V ~ 3.6V |
| Voltage - Supply, Digital | 2.7V ~ 3.6V |
| Settling Time | 1µs (Typ) |
| Supplier Device Package | 8-uMAX/uSOP |
| Architecture | R-2R |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | ±0.5, ±0.5 |
| Differential Output | No |
| Programmable | Not Verified |
