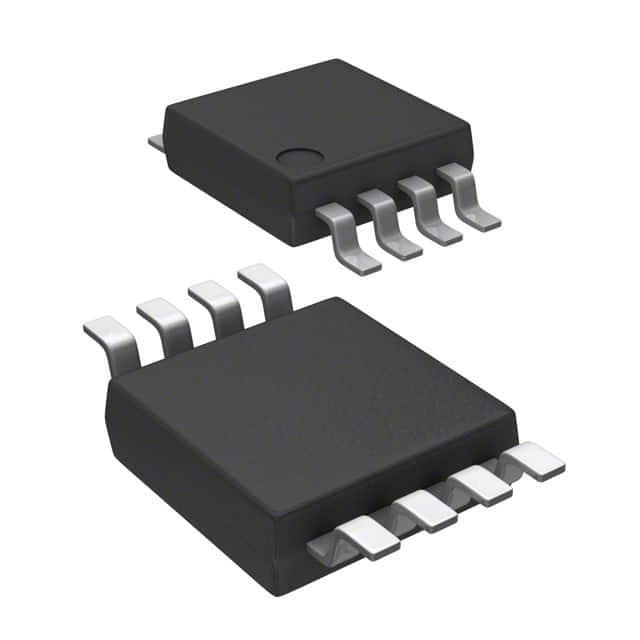

MAX5141EUA+T
IC DAC 14BIT V-OUT 8UMAXManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated MAX5141EUA-T is a 14-bit voltage-output digital-to-analog converter (DAC) designed for precision applications. This R-2R ladder architecture DAC features a single channel and utilizes an SPI interface for data communication. It offers an unbuffered voltage output with integral and differential linearity errors of ±0.5 LSB. The MAX5141EUA-T operates from a single 5V analog and digital supply and is specified for an operating temperature range of -40°C to 85°C. Its fast settling time of 1µs makes it suitable for applications requiring rapid signal transitions. The component is supplied in an 8-pin uMAX/uSOP package, suitable for surface mounting. This device is commonly found in industrial, consumer electronics, and medical equipment where accurate analog signal generation is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 31 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-TSSOP, 8-MSOP (0.118"", 3.00mm Width) |
| Output Type | Voltage - Unbuffered |
| Mounting Type | Surface Mount |
| Number of Bits | 14 |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Settling Time | 1µs (Typ) |
| Supplier Device Package | 8-uMAX/uSOP |
| Architecture | R-2R |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | ±0.5, ±0.5 |
| Differential Output | No |
| Programmable | Not Verified |
