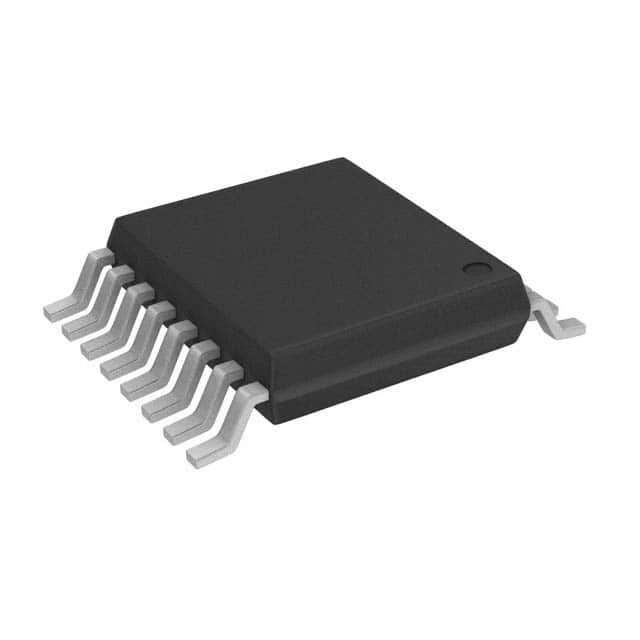

MAX5135GUE+T
IC DAC 12BIT V-OUT 16TSSOPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated's MAX5135GUE-T is a 12-bit, quad-channel, voltage-output digital-to-analog converter (DAC). This device features a string DAC architecture and offers a 3-wire serial, DSP, Microwire, QSPI, or SPI data interface for flexible integration. The MAX5135GUE-T provides buffered voltage output and supports both external and internal voltage references. Its INL and DNL specifications are ±0.25 LSB and ±1 LSB respectively. Operating across an analog and digital supply voltage range of 2.7V to 5.25V, it functions within an operating temperature range of -40°C to 105°C. The settling time is typically 5µs. This component is supplied in a 16-TSSOP package and is suitable for applications in industrial control, instrumentation, and communications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-TSSOP (0.173"", 4.40mm Width) |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Data Interface | 3-Wire Serial, DSP, Microwire, QSPI, SPI |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Supply, Analog | 2.7V ~ 5.25V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Settling Time | 5µs (Typ) |
| Supplier Device Package | 16-TSSOP |
| Architecture | String DAC |
| Number of D/A Converters | 4 |
| INL/DNL (LSB) | ±0.25, ±1 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
