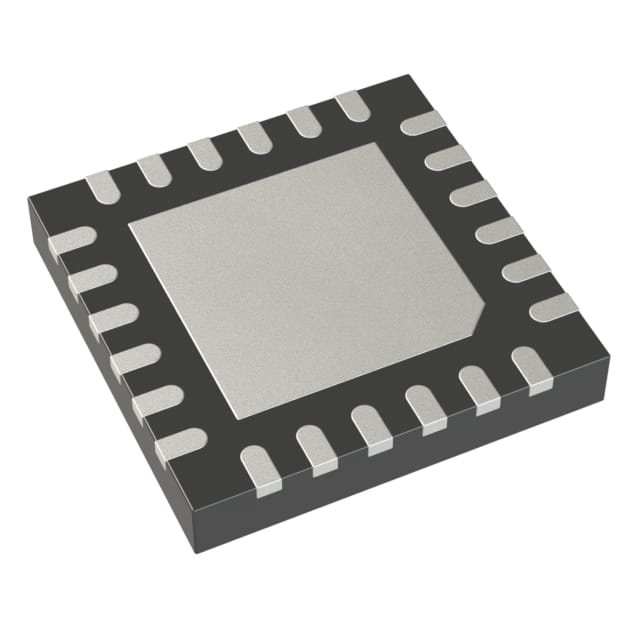

MAX5134AGTG+T
IC DAC 16BIT V-OUT 24TQFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated MAX5134AGTG-T is a quad, 16-bit, voltage-output digital-to-analog converter. This component features a 3-wire serial, DSP, Microwire, QSPI, and SPI data interface for flexible integration into embedded systems. It offers buffered voltage output and supports an analog and digital supply range of 2.7V to 5.25V. The device boasts excellent linearity with typical INL/DNL specifications of ±2 LSB and ±1 LSB, respectively. Its 5µs typical settling time makes it suitable for applications requiring rapid conversion. The MAX5134AGTG-T is housed in a 24-TQFN (4x4) exposed pad package designed for surface mounting. This component is utilized in various industries including industrial automation, test and measurement equipment, and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-WFQFN Exposed Pad |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Data Interface | 3-Wire Serial, DSP, Microwire, QSPI, SPI |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Supply, Analog | 2.7V ~ 5.25V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Settling Time | 5µs (Typ) |
| Supplier Device Package | 24-TQFN (4x4) |
| Architecture | String DAC |
| Number of D/A Converters | 4 |
| INL/DNL (LSB) | ±2, ±1 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
