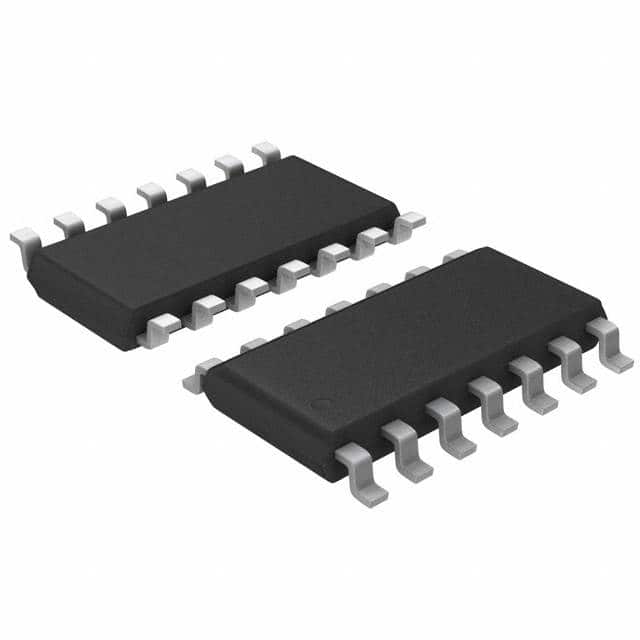

MAX512ESD+T
IC DAC 8BIT V-OUT 14SOICManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX512ESD-T is an 8-bit, triple voltage-output digital-to-analog converter (DAC). This component utilizes an R-2R architecture and features an SPI data interface for efficient digital control. The device offers buffered voltage outputs and requires an external voltage reference. It operates with analog supply voltages of ±5V and a digital supply of 5V. The MAX512ESD-T boasts a typical settling time of 70µs and exhibits excellent linearity with maximum INL/DNL specifications of ±1.5 LSB. Housed in a 14-SOIC package, it is designed for surface mount applications and operates within a temperature range of -40°C to 85°C. This DAC is suitable for applications in industrial control systems, audio signal processing, and general-purpose data acquisition. It is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 19 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 14-SOIC (0.154"", 3.90mm Width) |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 8 |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | ±5V |
| Voltage - Supply, Digital | 5V |
| Settling Time | 70µs (Typ) |
| Supplier Device Package | 14-SOIC |
| Architecture | R-2R |
| Number of D/A Converters | 3 |
| INL/DNL (LSB) | ±1.5 (Max), ±1 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
