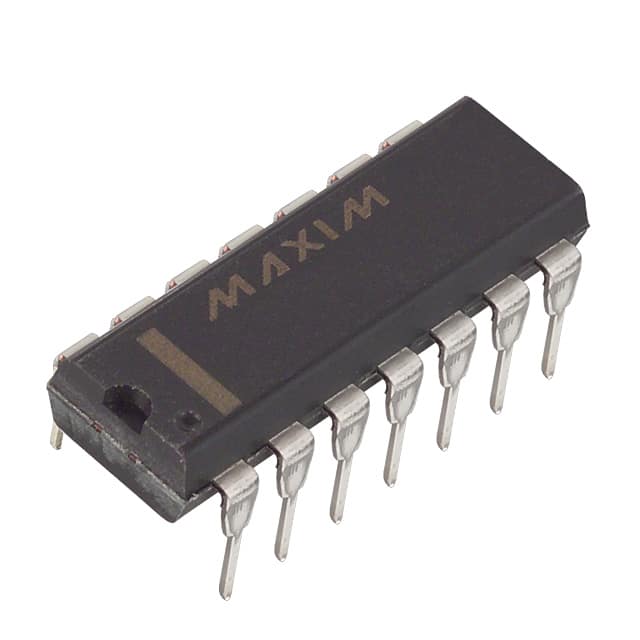

MAX512EPD+
IC DAC 8BIT V-OUT 14DIPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
8 Bit Digital to Analog Converter 3 14-PDIP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 14-DIP (0.300"", 7.62mm) |
| Output Type | Voltage - Buffered |
| Mounting Type | Through Hole |
| Number of Bits | 8 |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | ±5V |
| Voltage - Supply, Digital | 5V |
| Settling Time | 70µs (Typ) |
| Supplier Device Package | 14-PDIP |
| Architecture | R-2R |
| Number of D/A Converters | 3 |
| INL/DNL (LSB) | ±1.5 (Max), ±1 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
