MAX5112GWX+T
IC DAC 14BIT A-OUT 36WLPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
14 Bit Digital to Analog Converter 9 36-WLP (3.07x3.07)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

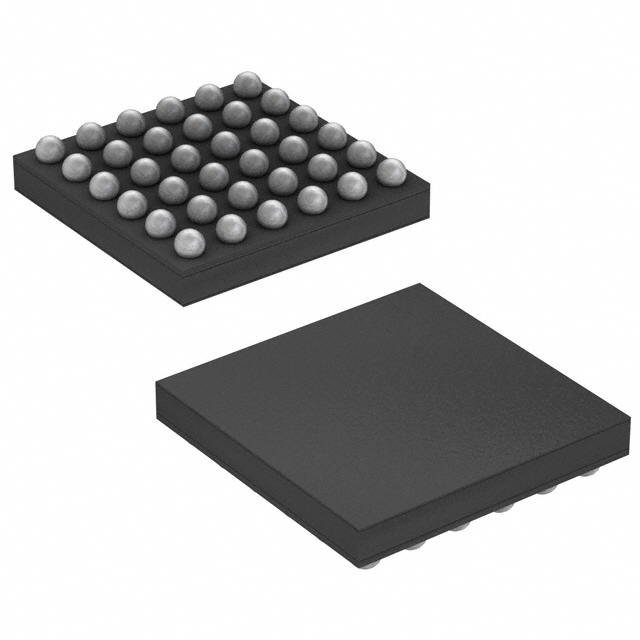

| Package / Case | 36-WFBGA, WLBGA |
| Output Type | Current - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 14 |
| Data Interface | I2C |
| Reference Type | Internal |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Supply, Analog | 2.6V ~ 3.3V, -5V |
| Voltage - Supply, Digital | 2.6V ~ 3.3V |
| Settling Time | 15µs (Typ) |
| Supplier Device Package | 36-WLP (3.07x3.07) |
| Architecture | - |
| Number of D/A Converters | 9 |
| INL/DNL (LSB) | ±2, ±0.5 |
| Differential Output | No |
| Programmable | Not Verified |
