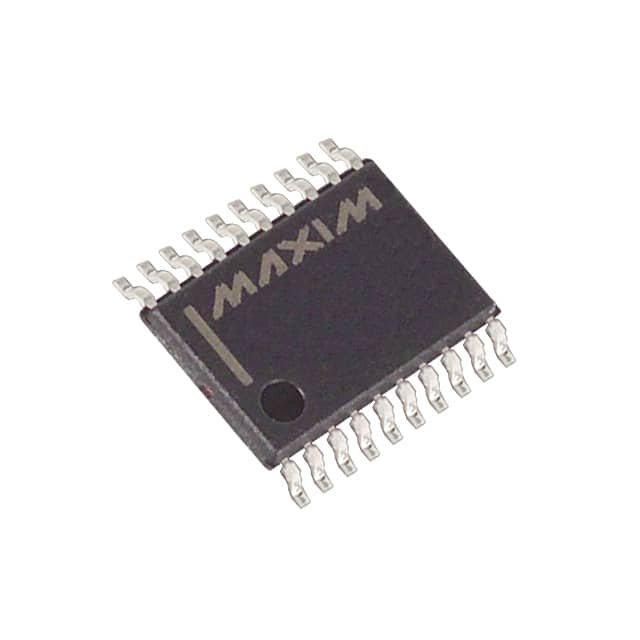

MAX5100AEUP+T
IC DAC 8BIT V-OUT 20TSSOPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX5100AEUP-T is an 8-bit, 4-channel voltage-output digital-to-analog converter. This component features a string DAC architecture and operates with analog and digital supply voltages ranging from 2.7V to 5.5V. The device offers a typical settling time of 6µs. It is housed in a 20-TSSOP package and supports surface mount installation. The MAX5100AEUP-T exhibits excellent linearity, with a maximum INL and DNL of ±1 LSB. This component is suitable for applications in industrial automation, consumer electronics, and battery-powered systems requiring precise analog signal generation. The device is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 21 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-TSSOP (0.173"", 4.40mm Width) |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 8 |
| Data Interface | Parallel |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Settling Time | 6µs (Typ) |
| Supplier Device Package | 20-TSSOP |
| Architecture | String DAC |
| Number of D/A Converters | 4 |
| INL/DNL (LSB) | ±1 (Max), ±1 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
