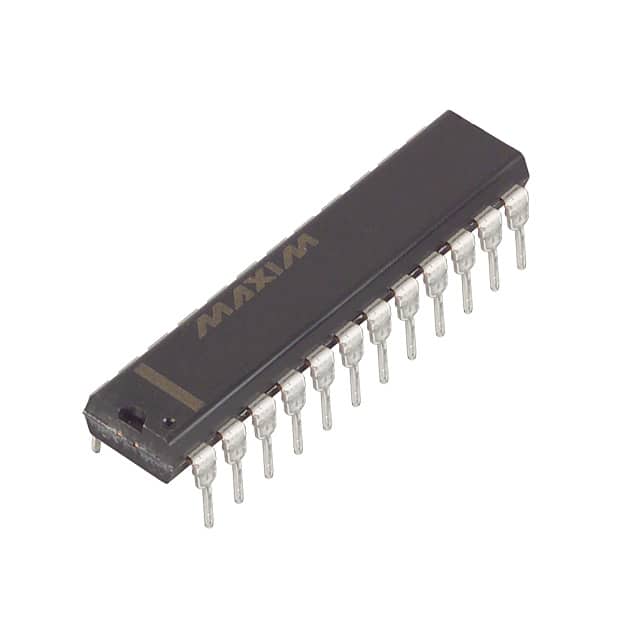

MAX505BENG+
IC DAC 8BIT V-OUT 24DIPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX505BENG- is an 8-bit, quad-channel, voltage-output digital-to-analog converter. This component features an R-2R architecture and a parallel data interface. The device offers buffered voltage outputs and requires an external reference. Key specifications include a typical settling time of 6µs and guaranteed INL/DNL of ±1 LSB maximum. Operating over an industrial temperature range of -40°C to 85°C, it is supplied in a 24-pin PDIP package suitable for through-hole mounting. Analog supply voltage can be ±5V, with a digital supply voltage of 5V. Applications for this DAC include industrial control systems, instrumentation, and data acquisition.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 24-DIP (0.300"", 7.62mm) |
| Output Type | Voltage - Buffered |
| Mounting Type | Through Hole |
| Number of Bits | 8 |
| Data Interface | Parallel |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | ±5V |
| Voltage - Supply, Digital | 5V |
| Settling Time | 6µs (Typ) |
| Supplier Device Package | 24-PDIP |
| Architecture | R-2R |
| Number of D/A Converters | 4 |
| INL/DNL (LSB) | -, ±1 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
