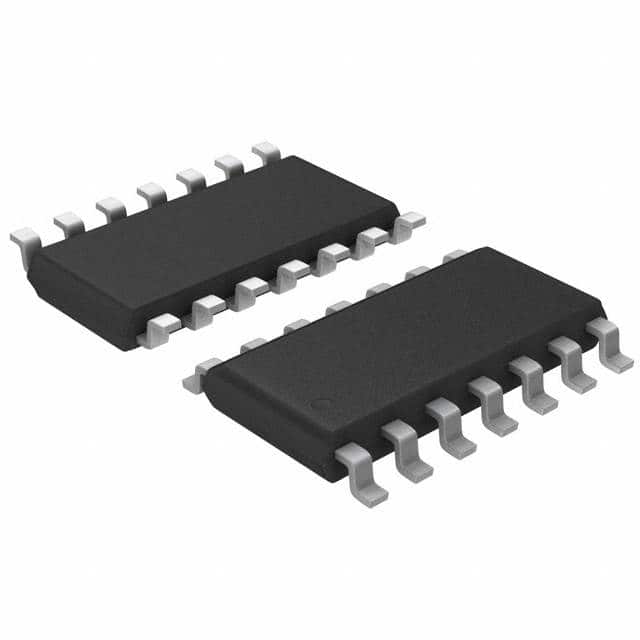

MAX504ESD+T
IC DAC 10BIT V-OUT 14SOICManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated MAX504ESD-T is a 10-bit, buffered voltage-output digital-to-analog converter. This R-2R architecture device features a single DAC channel with an SPI data interface. It supports both external and internal reference types for flexible application design. The MAX504ESD-T offers a ±0.5 LSB maximum Integral Non-Linearity (INL) and ±1 LSB maximum Differential Non-Linearity (DNL). Analog supply voltage can be ±5V, with a digital supply of 5V. The output is voltage-buffered and designed for surface mount integration in a 14-SOIC package. Its typical settling time is 25µs, and it operates within a temperature range of -40°C to 85°C. This component is commonly utilized in applications within the industrial and consumer electronics sectors. The MAX504ESD-T is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 14-SOIC (0.154"", 3.90mm Width) |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 10 |
| Data Interface | SPI |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | ±5V |
| Voltage - Supply, Digital | 5V |
| Settling Time | 25µs (Typ) |
| Supplier Device Package | 14-SOIC |
| Architecture | R-2R |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | ±0.5 (Max), ±1 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
