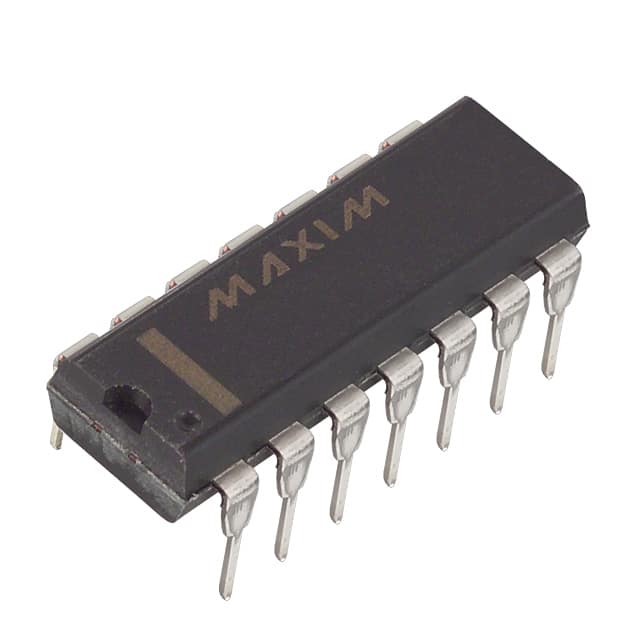

MAX504CPD+
IC DAC 10BIT V-OUT 14DIPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX504CPD- is a 10-bit, R-2R architecture digital-to-analog converter with a voltage output. This component features a single DAC channel and utilizes an SPI data interface for digital communication. The device offers a ±0.5 LSB maximum Integral Non-Linearity (INL) and ±1 LSB maximum Differential Non-Linearity (DNL). It supports external and internal reference types, with a typical settling time of 25µs. The MAX504CPD- is housed in a 14-PDIP (0.300", 7.62mm) through-hole mounting package. Operating within a temperature range of 0°C to 70°C, it can be powered by analog supplies of ±5V and digital supplies of 5V. This converter is commonly found in industrial automation, medical equipment, and test and measurement applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 14-DIP (0.300"", 7.62mm) |
| Output Type | Voltage - Buffered |
| Mounting Type | Through Hole |
| Number of Bits | 10 |
| Data Interface | SPI |
| Reference Type | External, Internal |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | ±5V |
| Voltage - Supply, Digital | 5V |
| Settling Time | 25µs (Typ) |
| Supplier Device Package | 14-PDIP |
| Architecture | R-2R |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | ±0.5 (Max), ±1 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
