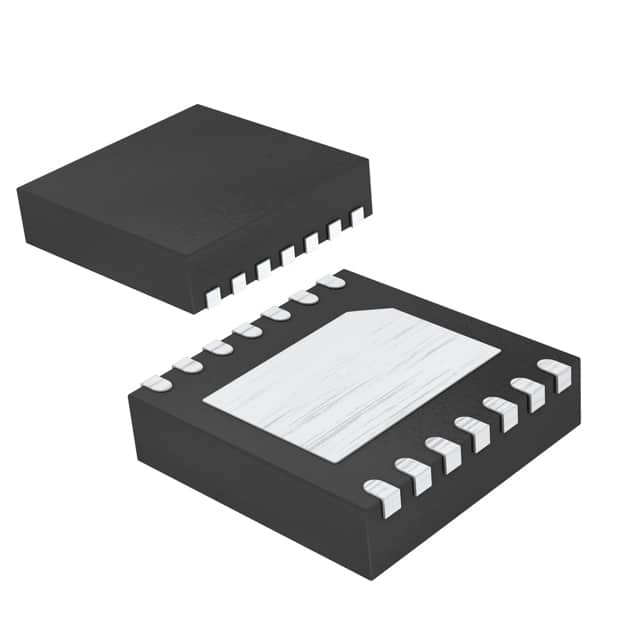

DS4422N+
IC DAC 7BIT A-OUT 14TDFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
7 Bit Digital to Analog Converter 2 14-TDFN (3x3)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 23 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 14-WFDFN Exposed Pad |
| Output Type | Current - Unbuffered |
| Mounting Type | Surface Mount |
| Number of Bits | 7 |
| Data Interface | I2C |
| Reference Type | - |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Settling Time | - |
| Supplier Device Package | 14-TDFN (3x3) |
| Architecture | Current Sink, Current Source |
| Number of D/A Converters | 2 |
| INL/DNL (LSB) | ±1 (Max), ±0.5 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
Request a Quote
