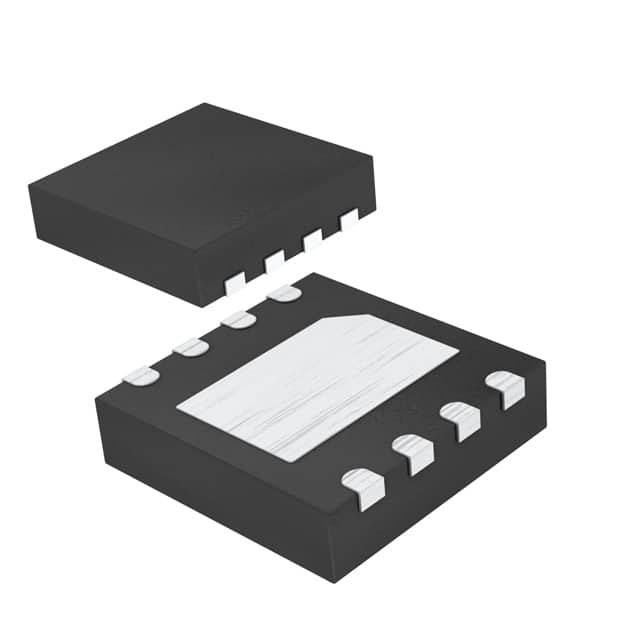

MAX5423ETA+T
IC DGTL POT 100KOHM 256TAP 8TDFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Digital Potentiometers
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated MAX5423ETA-T is a single-circuit digital potentiometer offering a 100k Ohm resistance with 256 discrete taps for fine-grained control. Featuring a linear taper and an SPI serial interface, this component facilitates precise adjustment of voltage or current levels. Its compact 8-TDFN (3x3) package with exposed pad ensures efficient thermal performance and suitability for surface mount assembly. The device operates across a wide temperature range of -40°C to 85°C, with a supply voltage range of 2.7V to 5.25V. Typical wiper resistance is 325 Ohms, and it boasts a low temperature coefficient of 35ppm/°C. This component is prevalent in applications within industrial automation, consumer electronics, and medical devices requiring accurate analog signal conditioning and control.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Resistance (Ohms) | 100k |
| Tolerance | - |
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-WDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Memory Type | Non-Volatile |
| Interface | SPI |
| Configuration | Potentiometer |
| Operating Temperature | -40°C ~ 85°C |
| Number of Taps | 256 |
| Voltage - Supply | 2.7V ~ 5.25V |
| Taper | Linear |
| Supplier Device Package | 8-TDFN (3x3) |
| Resistance - Wiper (Ohms) (Typ) | 325 |
| Temperature Coefficient (Typ) | 35ppm/°C |
| Number of Circuits | 1 |
| Programmable | Not Verified |
