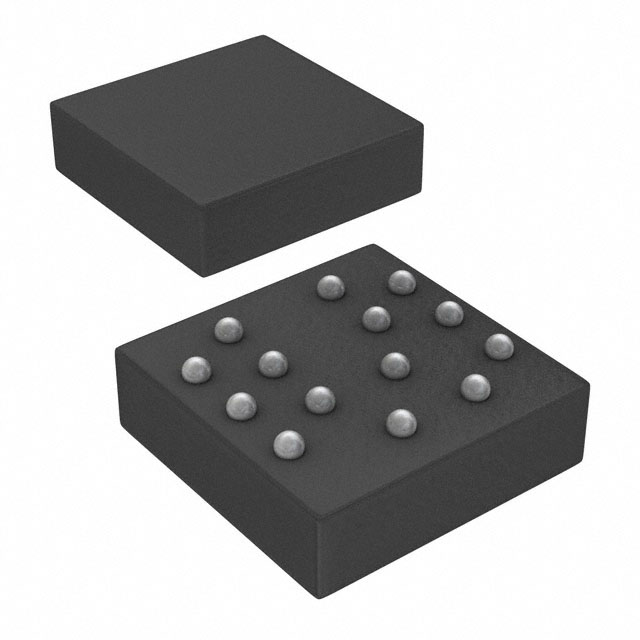

DS1845X-100/T&R
IC DGTL POT 100KOHM 14FLIPCHIPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Digital Potentiometers
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated DS1845X-100-T-R is a dual-channel digital potentiometer featuring a 100 kOhm resistance and 256 taps per channel, offering linear taper adjustment. This component operates over a 2.7V to 5.5V supply voltage range and includes a selectable address for I2C communication. Designed for surface mounting, it is supplied in a compact 14-FlipChip package with dimensions of 2.11x2.34. The device boasts non-volatile memory for storing wiper positions and a typical wiper resistance of 500 Ohms. Operating temperature range is -40°C to 85°C. This device is suitable for applications in industrial control systems, audio processing, and power management.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Resistance (Ohms) | 100k |
| Tolerance | ±20% |
| Features | Selectable Address |
| Packaging | Tape & Reel (TR) |
| Package / Case | 14-WFBGA, FCBGA |
| Mounting Type | Surface Mount |
| Memory Type | Non-Volatile |
| Interface | I2C |
| Configuration | Potentiometer |
| Operating Temperature | -40°C ~ 85°C |
| Number of Taps | 100, 256 |
| Voltage - Supply | 2.7V ~ 5.5V |
| Taper | Linear |
| Supplier Device Package | 14-FlipChip (2.11x2.34) |
| Resistance - Wiper (Ohms) (Typ) | 500 |
| Temperature Coefficient (Typ) | 750ppm/°C |
| Number of Circuits | 2 |
| Programmable | Not Verified |
