DS1801E-014+T&R

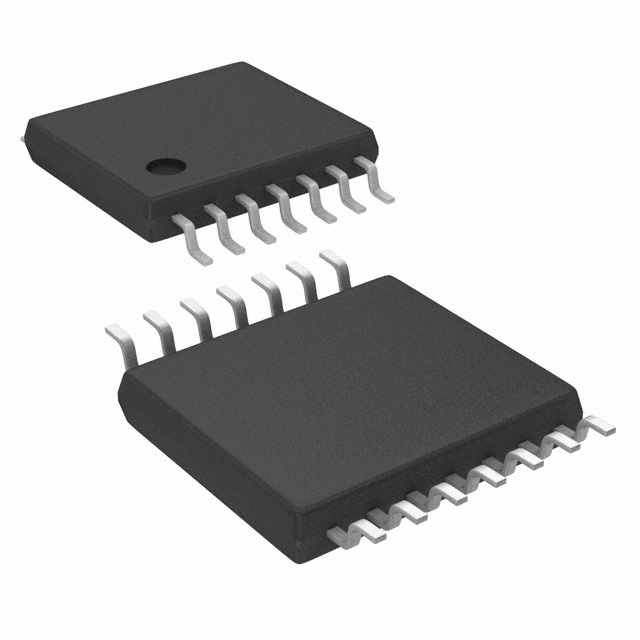

IC DGTL POT 45KOHM 65TAP 14TSSOPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Digital Potentiometers
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated DS1801E-014-T-R is a dual-channel, 65-tap digital potentiometer with a total resistance of 45k Ohm. This device features a logarithmic taper and ±20% tolerance, with a typical wiper resistance of 400 Ohms. The DS1801E-014-T-R operates from a 2.7V to 5.5V supply and is housed in a 14-TSSOP package. Key features include a cascade pin for extending the resistance range, a mute function, and zero-cross sensing. The serial interface facilitates control and configuration. This component finds application in systems requiring precise voltage or gain control, such as industrial automation, audio processing, and test and measurement equipment. The operating temperature range is -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Resistance (Ohms) | 45k |
| Tolerance | ±20% |
| Features | Cascade Pin, Mute, Zero-Cross Sense |
| Packaging | Tape & Reel (TR) |
| Package / Case | 14-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Memory Type | Volatile |
| Interface | Serial |
| Configuration | Potentiometer |
| Operating Temperature | -40°C ~ 85°C |
| Number of Taps | 65 |
| Voltage - Supply | 2.7V ~ 5.5V |
| Taper | Logarithmic |
| Supplier Device Package | 14-TSSOP |
| Resistance - Wiper (Ohms) (Typ) | 400 |
| Temperature Coefficient (Typ) | 750ppm/°C |
| Number of Circuits | 2 |
| Programmable | Not Verified |
